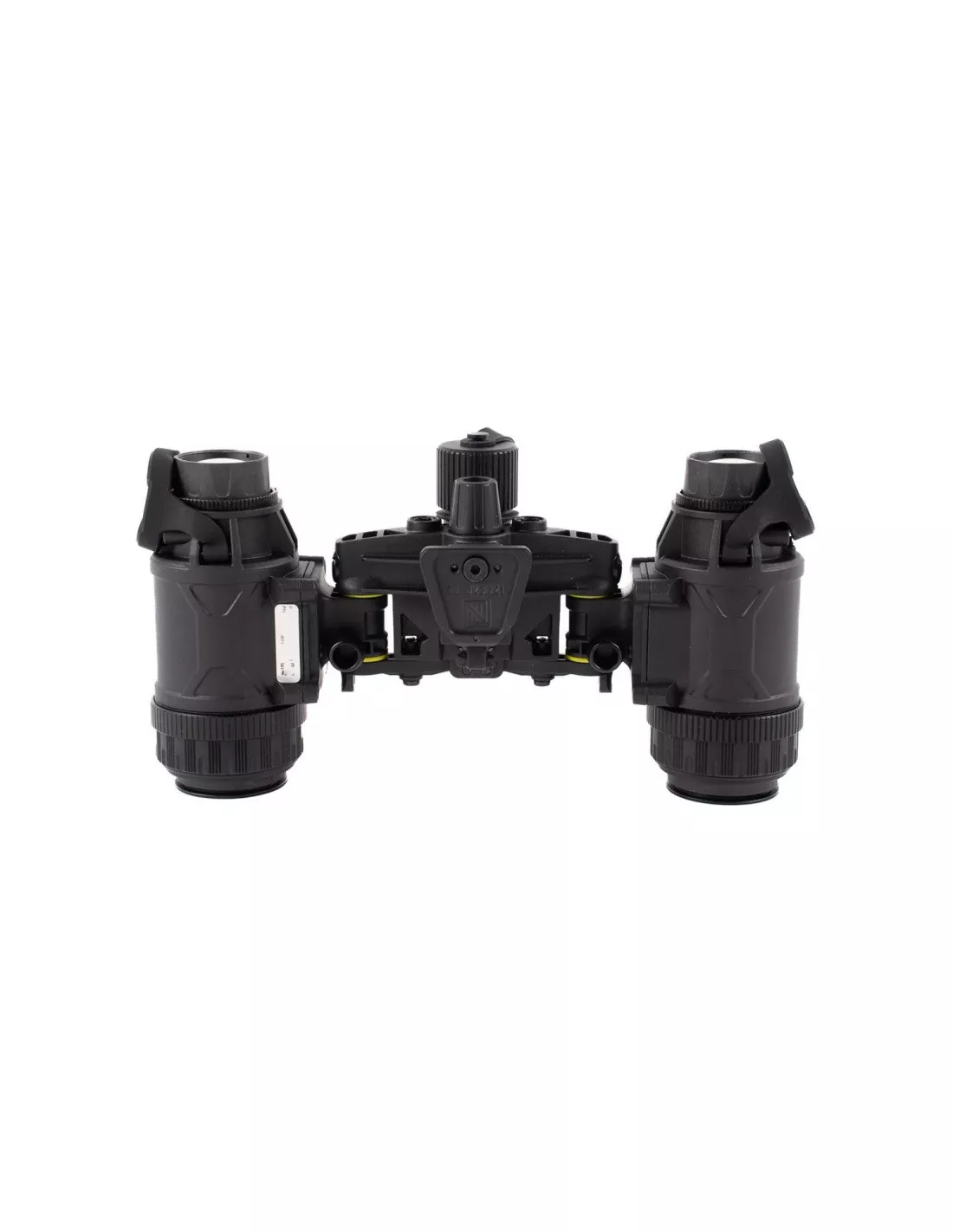

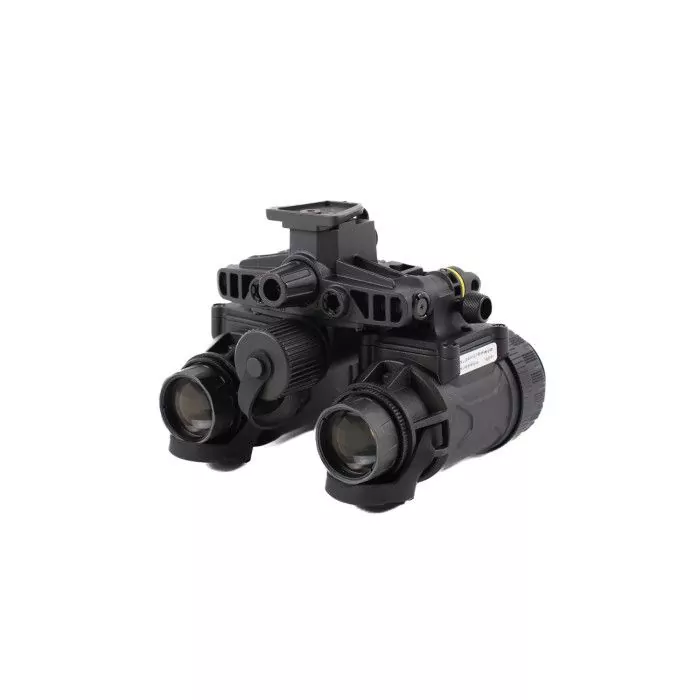

Jerry-31 Gen.2 + (White Phosphor) | InfiRay

The J-31 NVG are reliable and have superior performance while they are still compact and light (481 g). They have manual gain, so the user can adjust the brightness to perfered level. They have a built in self protection against bright light. They have a build in IPD stops and IR illuminator. The dovetail can be mounted on a G24. Each pod turns on and off based on the articulation.

In stock 1

Reference J31G2

€4,899.95

Tax included

Description

Features:

1400-1600 FOM White Phosphor Intensifiers
Manual Gain
Individual pod shut-off when rolled out of view (can be disabled)
Unit auto-off when stowed vertically (can be disabled)
Built-in IR illuminator and low battery indicator
User-adjustable pod tension via two Philips #1 screws on rear of unit
Interpupillary Distance (IPD) stops
Remote battery capable with Jerry battery pack (sold separately)
Adjustable focus and eyepiece diopters
Built-in rubber day/dust lens covers
Uses common AA batteries
Waterproof to 1 metre
Comes with padded carry case
Built-in brackets for JerryC Clip-On Thermal Imagers

Specifications:

Material: Polymer housing with aluminum dovetail
Tube type: NNVT MX-10160 white phosphor 3-pin tube (manual gain)
Figure of merit (FOM) SNRxLP/mm: NNVT-4 (1400-1600 FOM)
Weight: 481 g
Power supply: AA battery (onboard), optional external battery via 7-pin Fischer port
Runtime: 20 h, up to 80 h with external battery
Lenses: Ultra low profile lenses
FOV: 40°
Individual pod power off: Programmable - turns of with tilt up or tilt to side
Diopter: Adjustable +2 - -6
Water and dust rating: IP76
Mount style: Dovetail
Onboard IR illuminator: Yes
