UNVG-51 HPW+ (Gen 2+ White Phosphor, 2100 FOM) | AGM

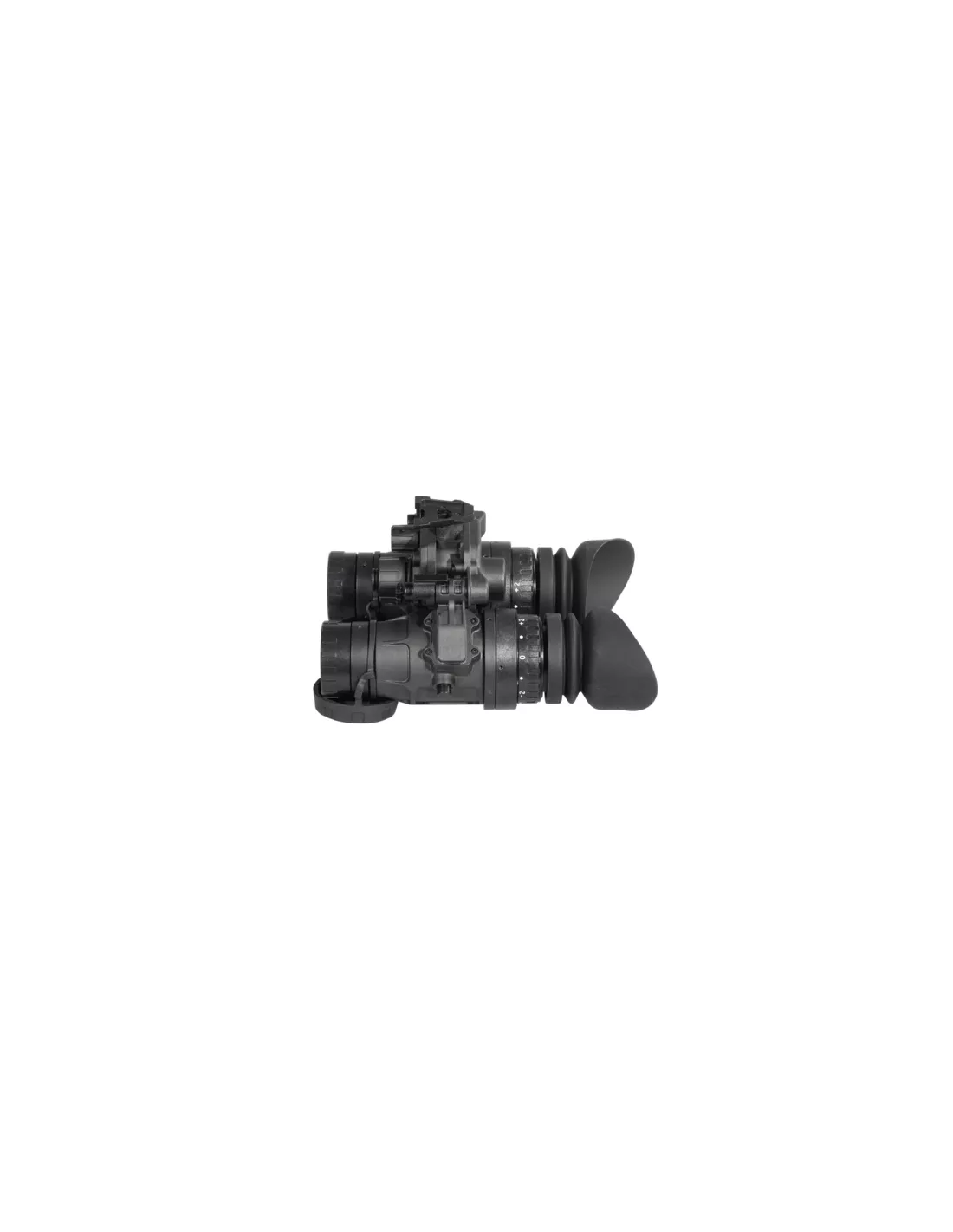

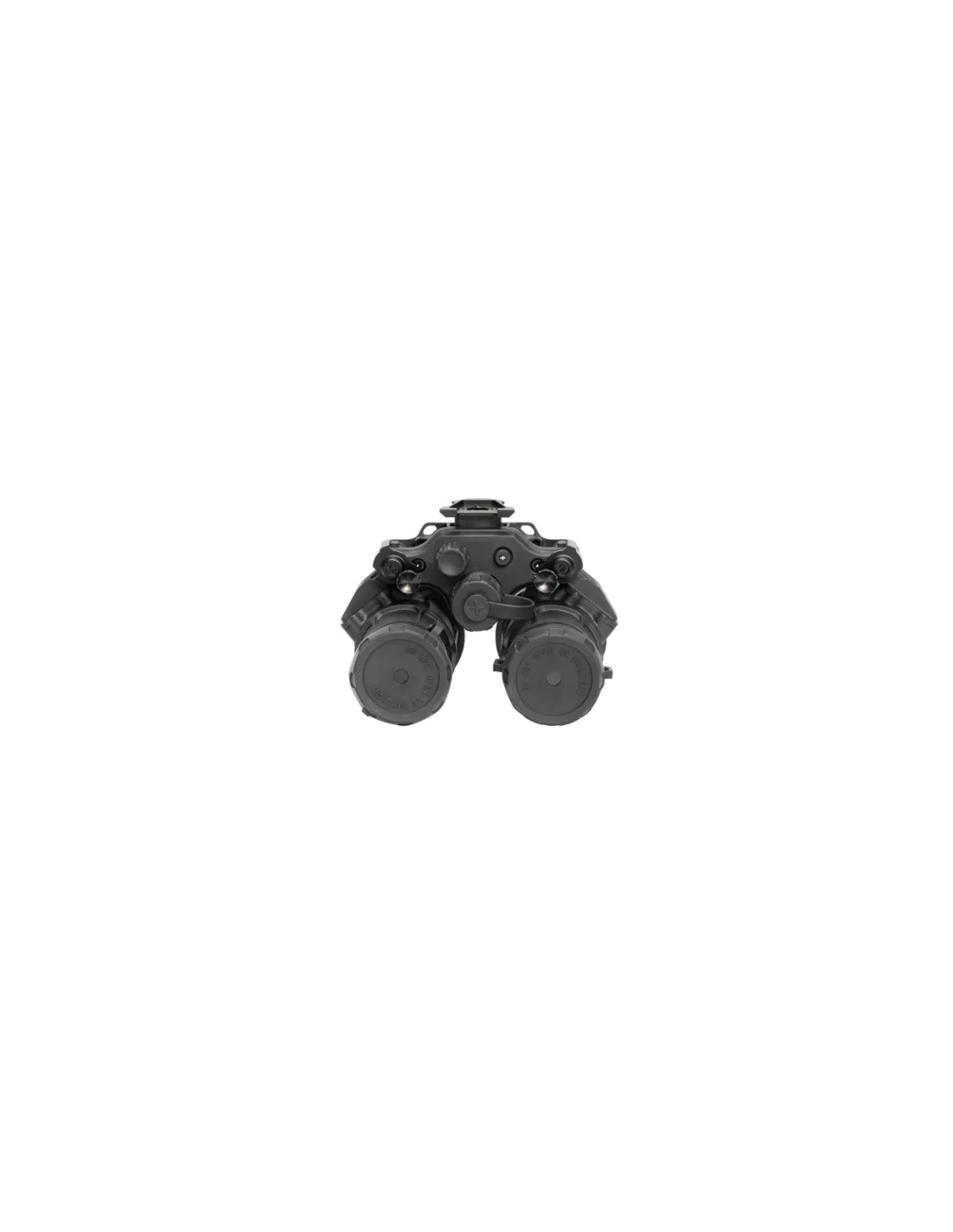

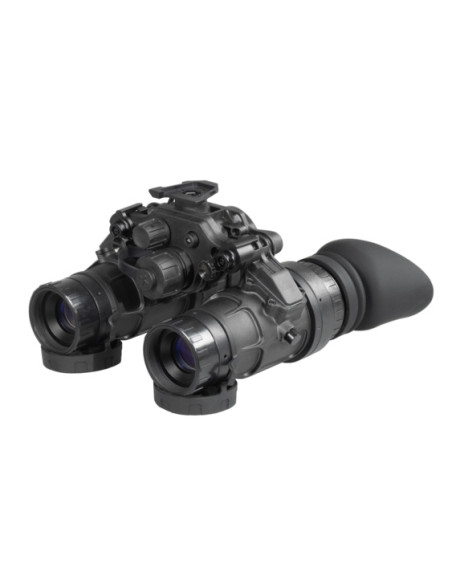

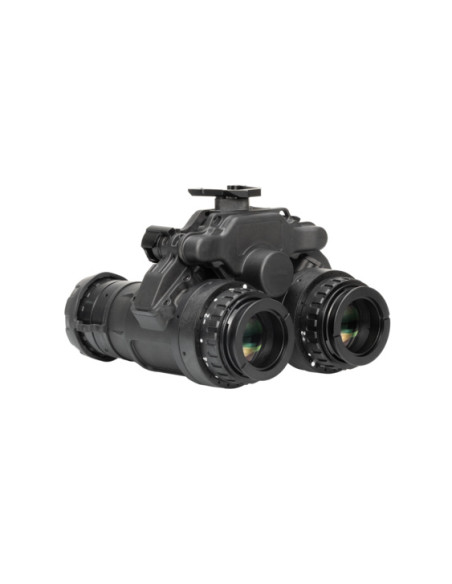

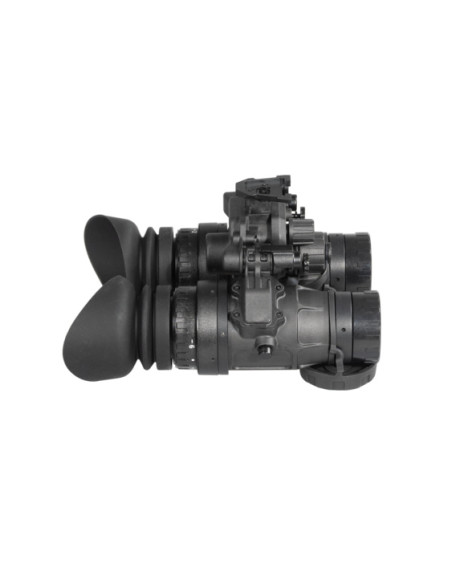

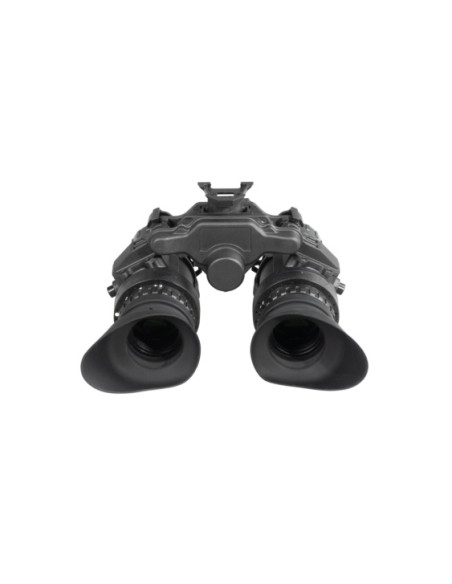

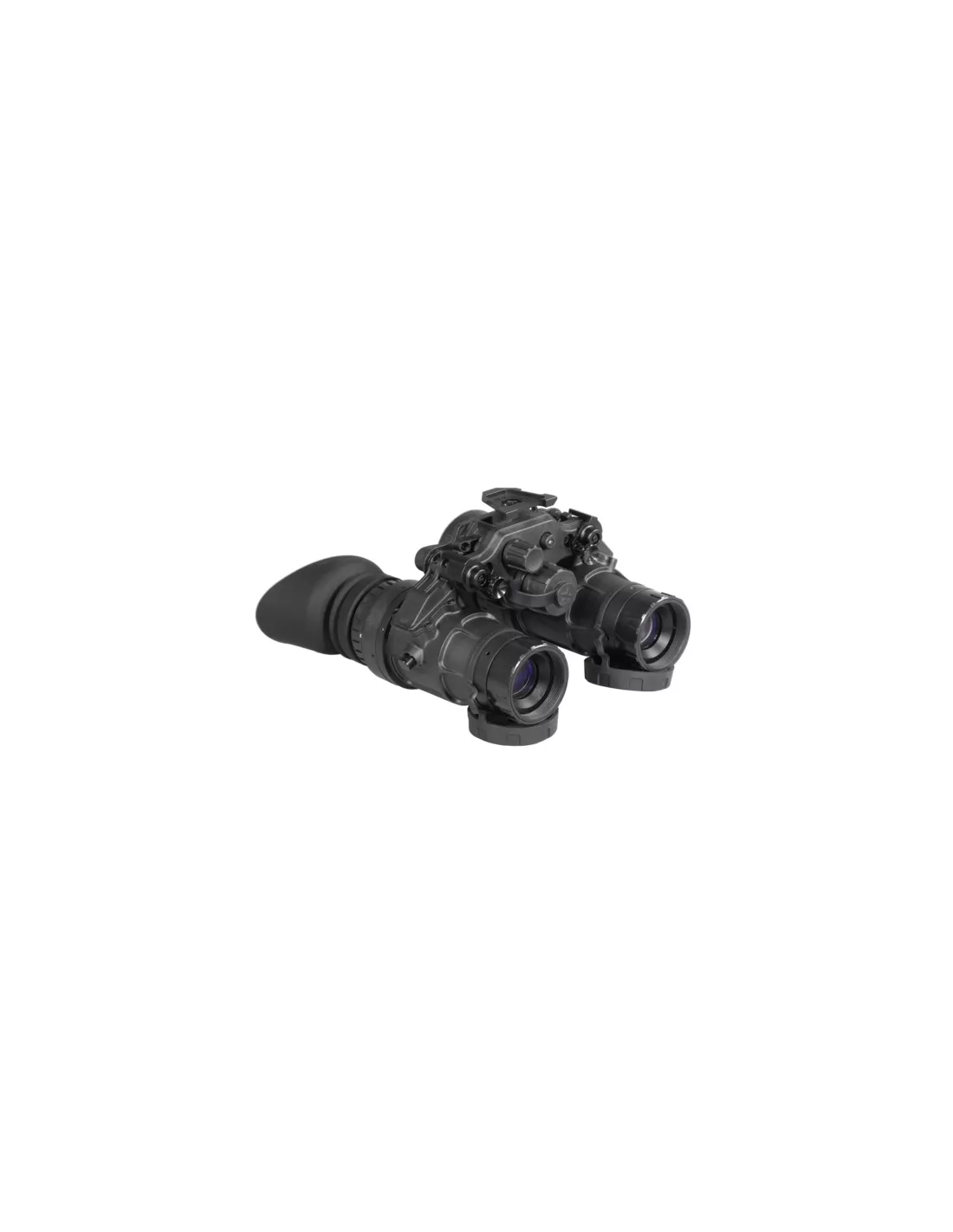

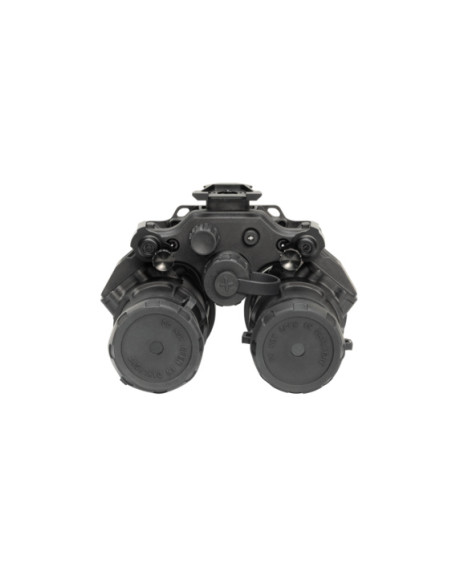

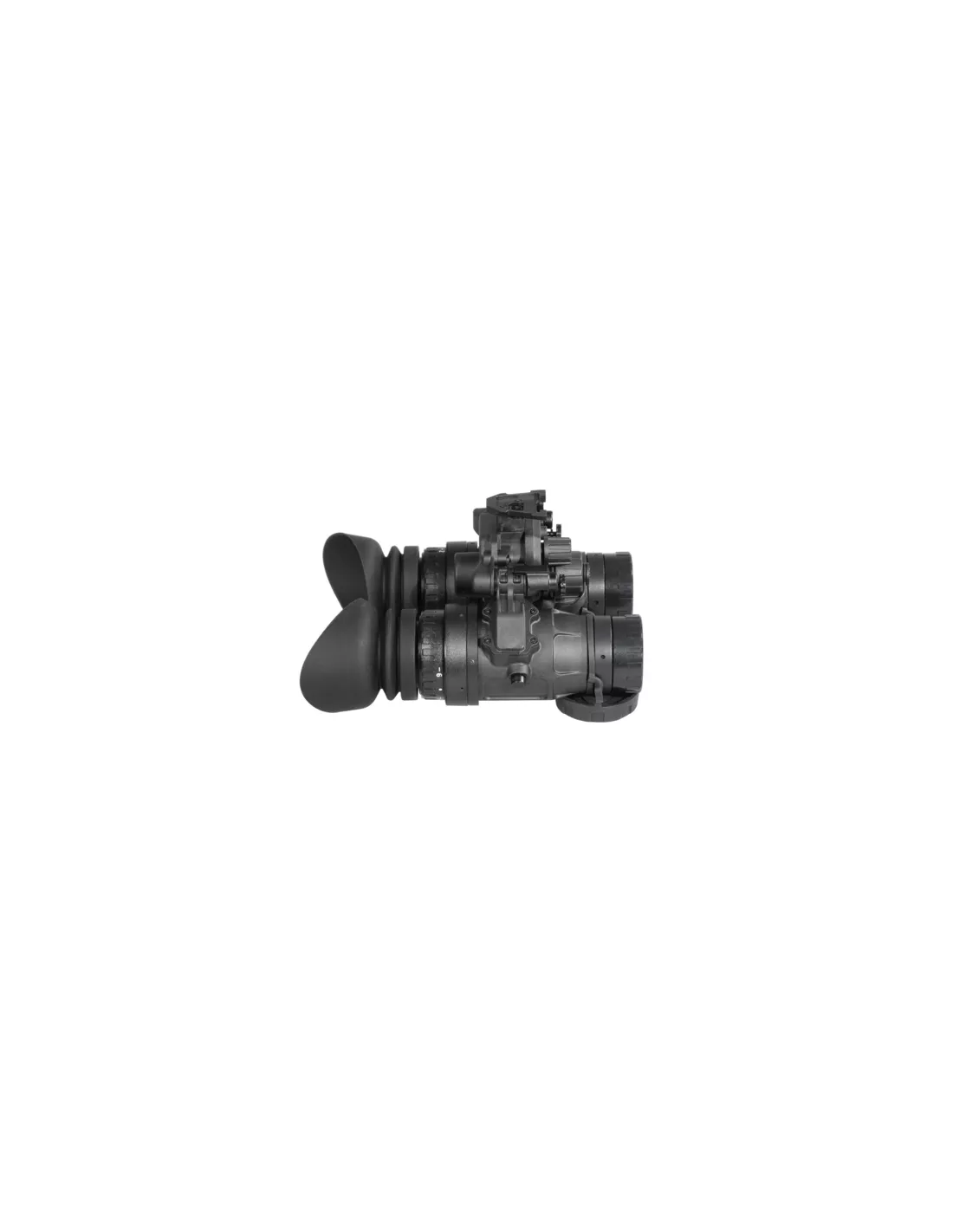

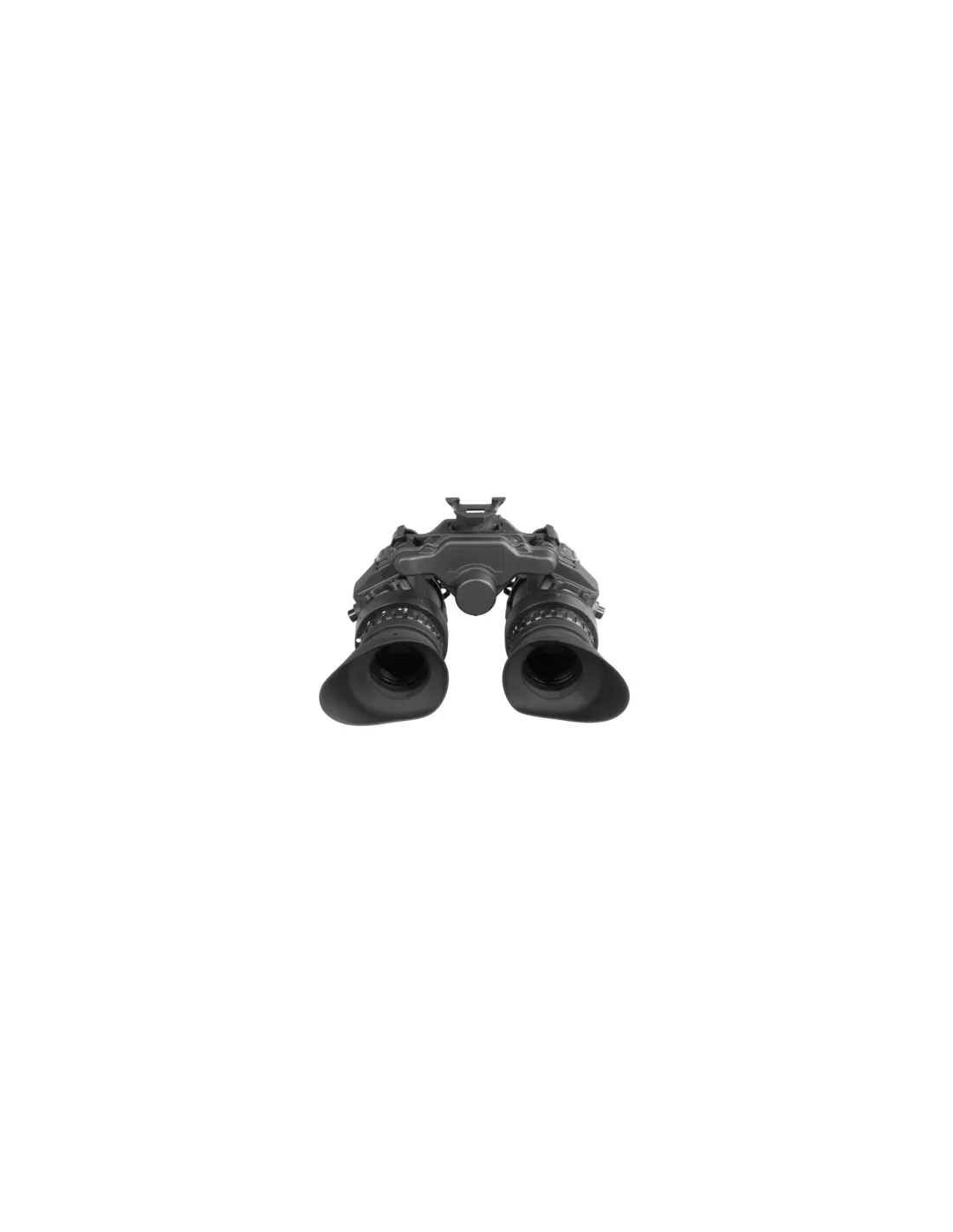

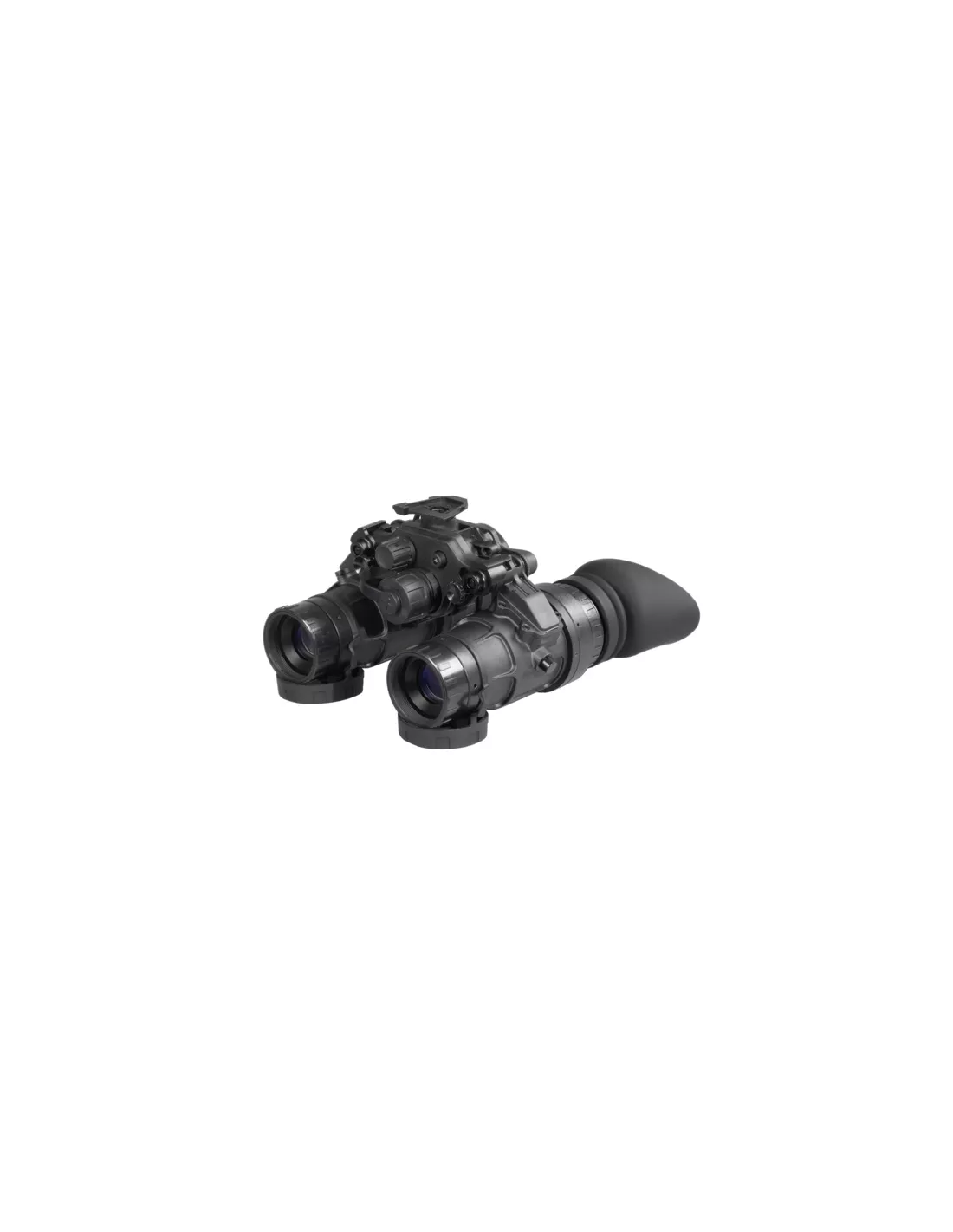

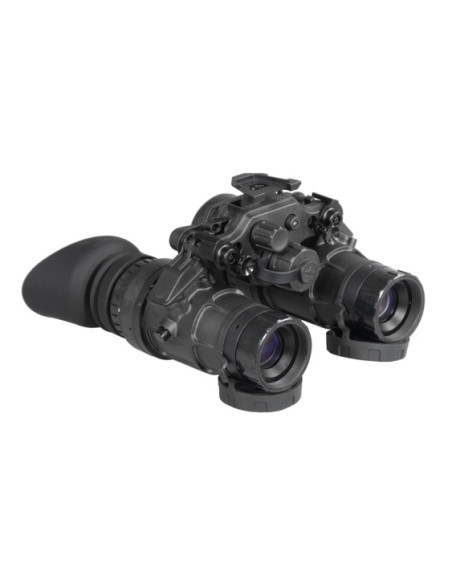

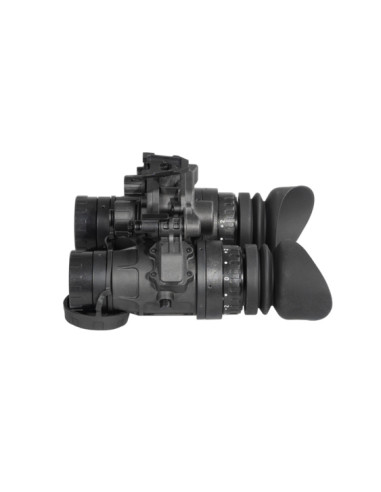

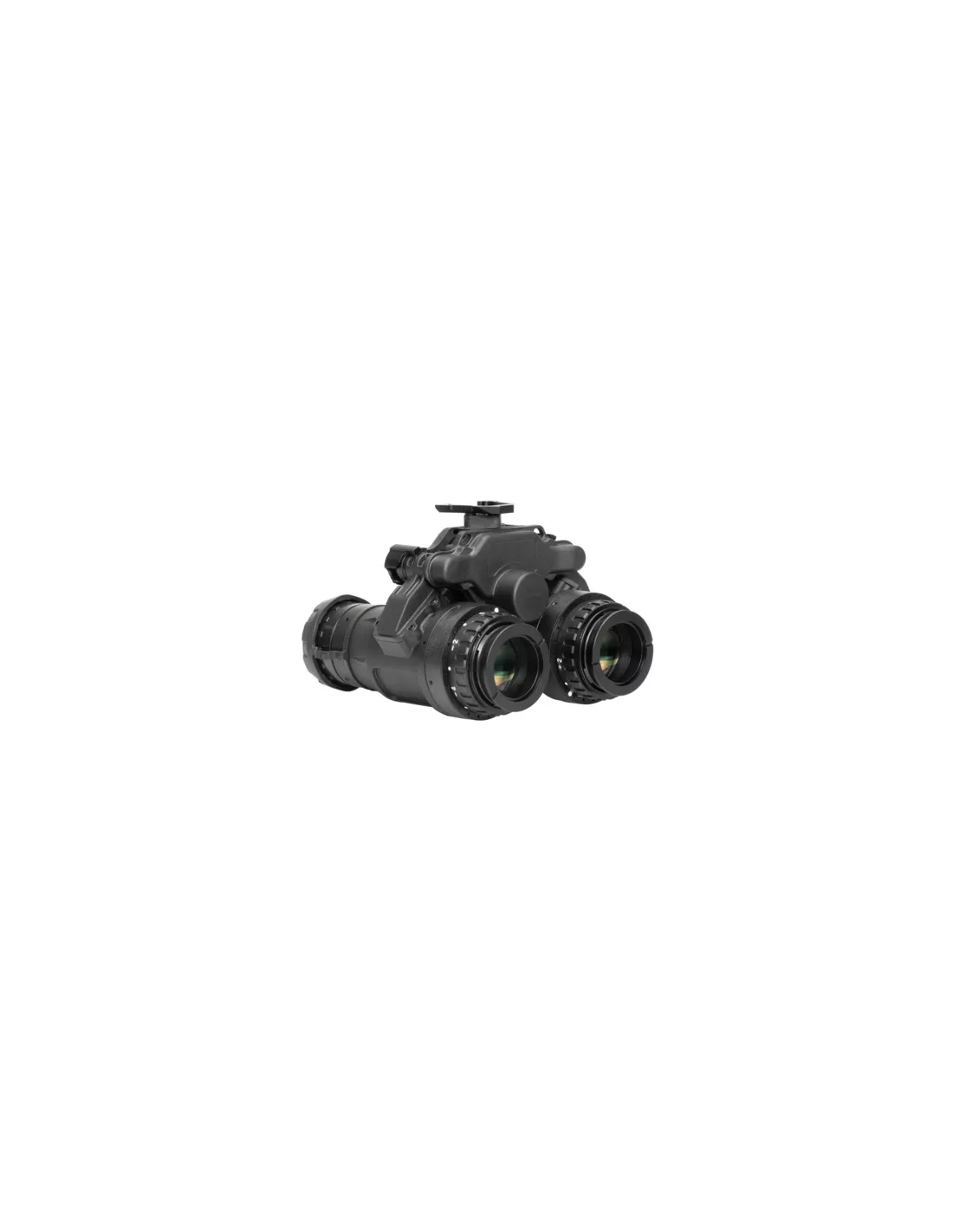

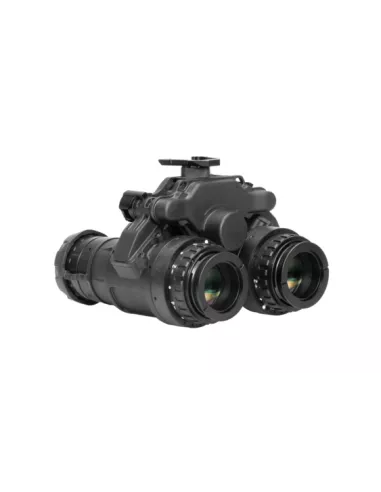

The AGM UNVG-51 is a compact, dual-tube night vision goggle system designed for professional users who need maximum awareness and reliability in low-light environments. Thanks to its expanded 51° field of view, the UNVG-51 gives you a much wider picture than traditional night vision devices, making it ideal for tactical operations, law enforcement, security work, and demanding night-time hunting or training.

Built around high-performance Gen 2+ or Gen 3 image intensifier tubes and advanced multi-coated optics, it delivers a bright, clear image even in rapidly changing light conditions. Manual gain control lets you fine-tune image brightness to your preferences, while the independent pod design allows for single-eye or dual-eye configurations, depending on your mission and comfort. When a pod is rotated to the side, its tube automatically powers down to save battery and prevent bloom.

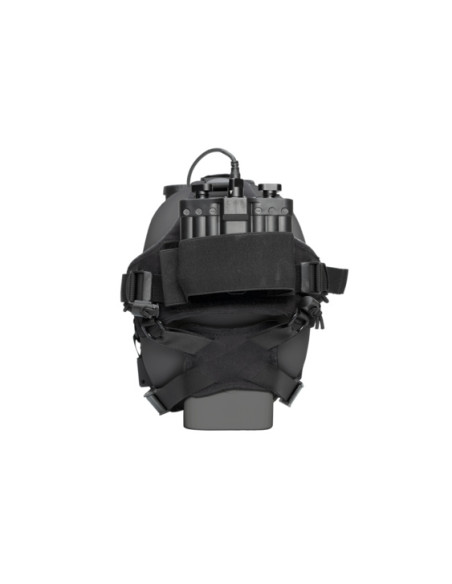

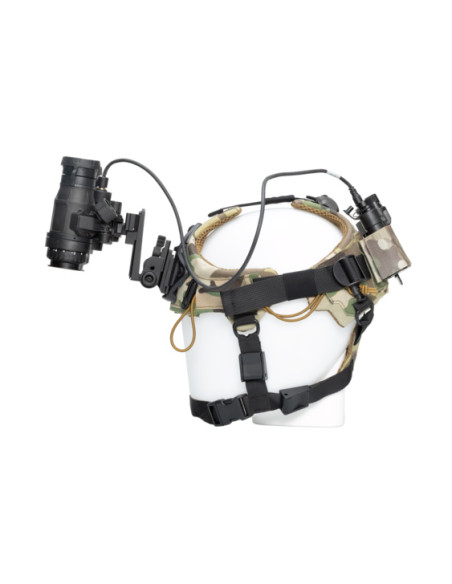

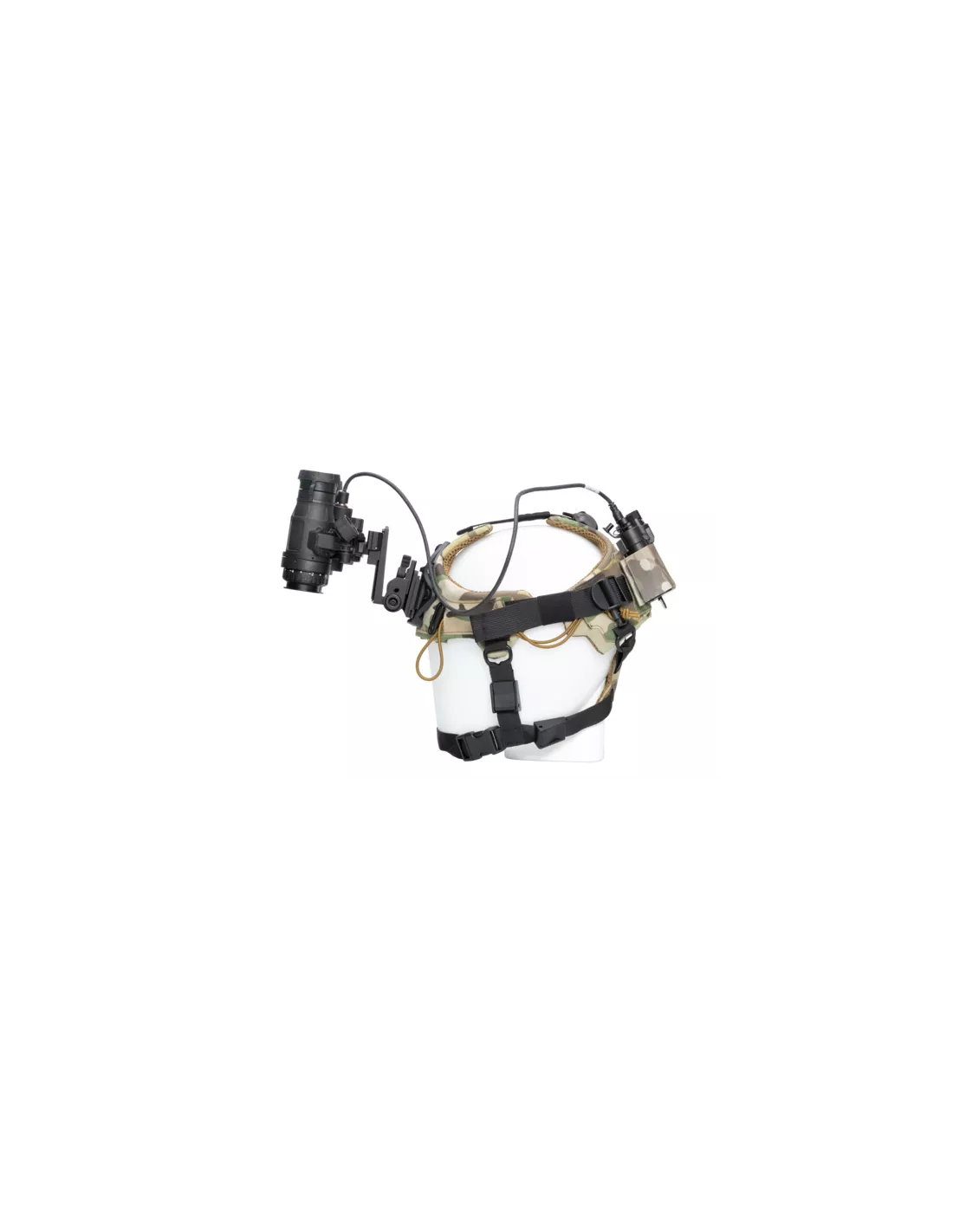

The lightweight 550 g composite housing is rugged, corrosion- and impact-resistant, and compatible with standard dovetail-style helmet and head mounts. Powered by a single AA battery, the UNVG-51 offers up to 15 hours of runtime, which can be extended up to 50 hours with the included external battery pack. An integrated IR illuminator provides additional illumination for reading, map work, and indoor or close-quarters use in total darkness.

Optimized for PVS-14-style components, the UNVG-51 gives you broad compatibility with existing lenses and accessories, making it a flexible choice for users who already run PVS-14 systems and want to upgrade to a wider field-of-view dual-tube platform.

KEY FEATURES

• Dual-channel night vision goggle system with true stereoscopic vision
• Wide 51° field of view for increased situational awareness
• Supports Gen 2+ or Gen 3 image intensifier tubes
• Advanced multi-coated optics for improved image clarity
• Manual gain control for precise brightness adjustment
• Independent pod movement for single or dual-eye configurations

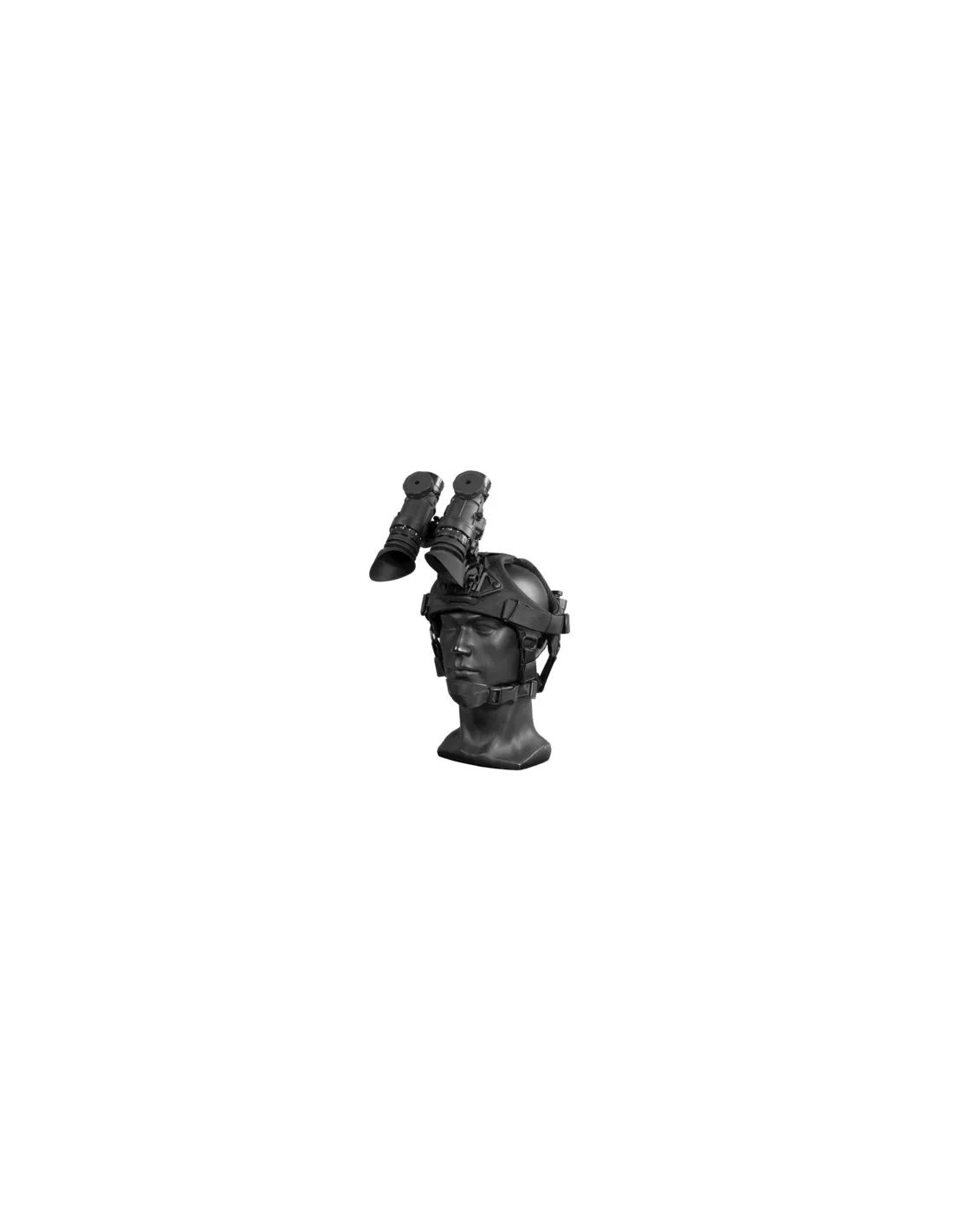

• Auto-off function: each tube switches off when its pod is rotated sideways
• Lightweight, corrosion- and impact-resistant composite housing (approx. 550 g / 19.4 oz)

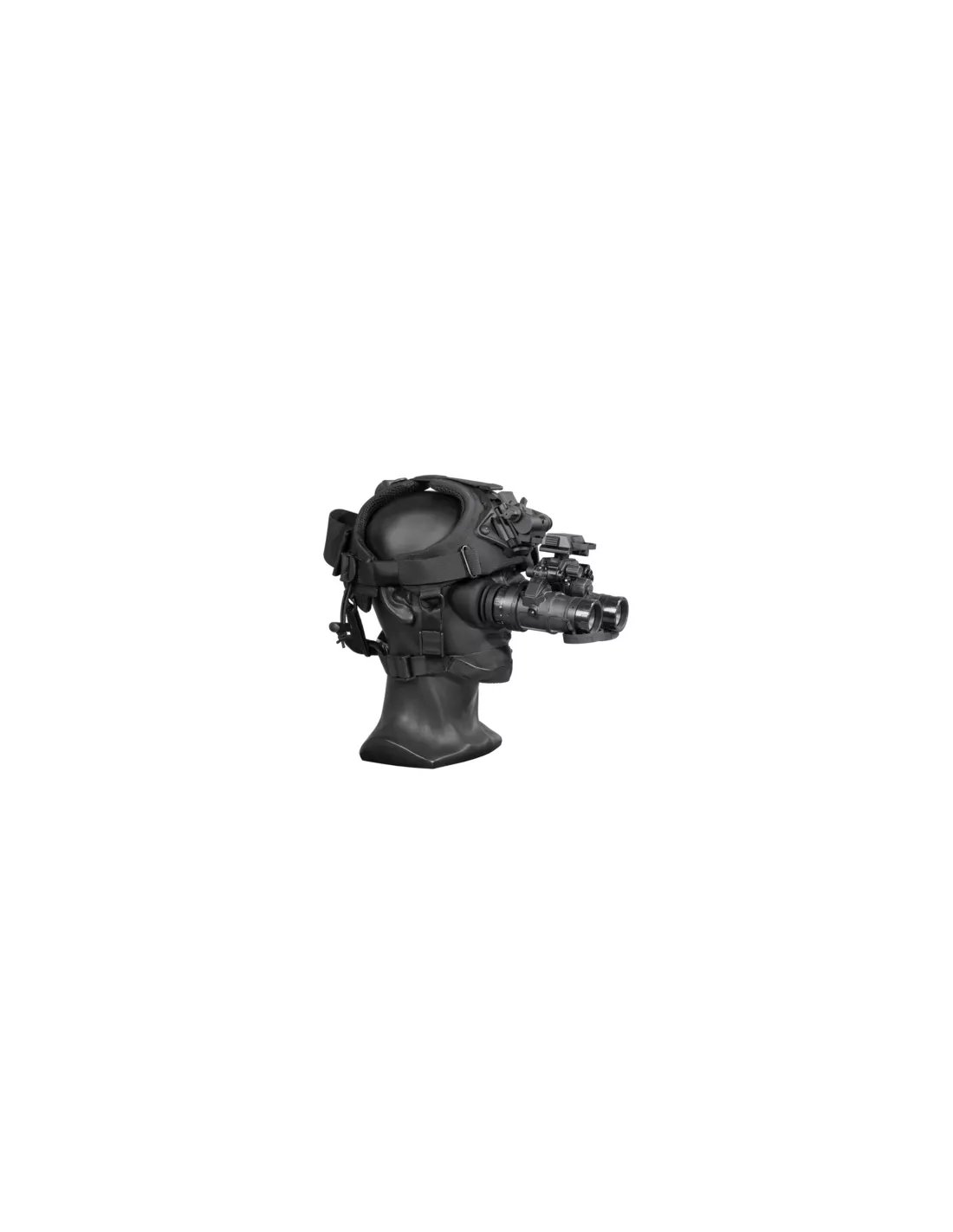

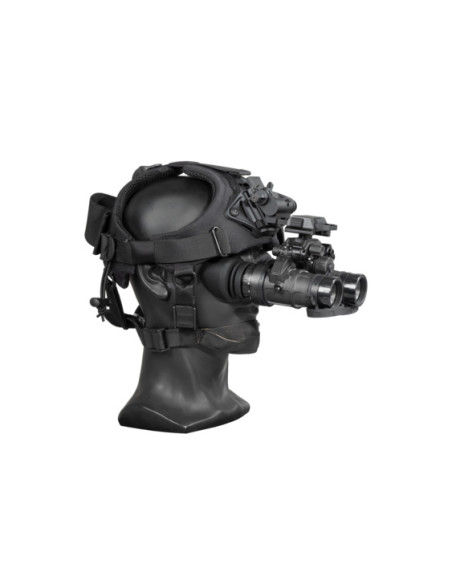

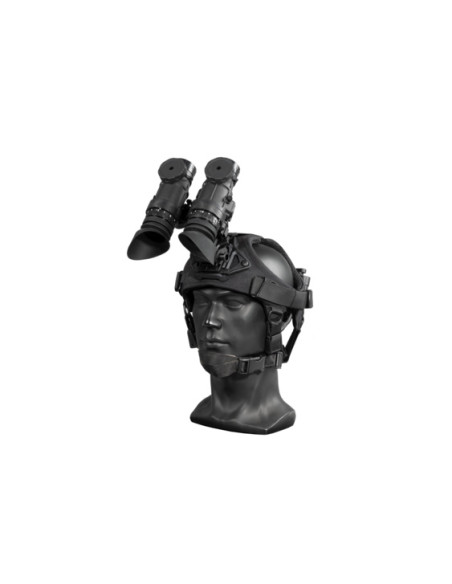

• Compatible with standard dovetail-type helmet and head mounts
• PVS-14-style compatible objective and eyepiece lenses for easy integration with existing accessories
• Integrated IR illuminator for reading and close-range tasks in complete darkness
• Up to 15 hours runtime on a single AA battery; up to 50 hours with external battery pack (included)
• Simplified IP stop design to quickly set and retain your preferred interpupillary distance

SPECIFICATIONS

• FOM HPW+ - 2100
• Resolution HPW+ - 68 lp/mm
• Magnification 1x
• Lens System 19mm, F/1.26
• FOV 51°
• Exit Pupil Diameter 14 mm
• Focus Range 0.25 m to Infinity
• Diopter Adjustment -6 to +2 diopters
• Interpupillary Distance 56 to 72 mm
• Eye Relief 17mm
• Manual Gain Control Yes
• Infrared Illuminator Yes
• Battery Type One AA (1.5 V) or External Battery Pack (four AA or two CR123A)
• Battery Life (Operating, 20°C, IR off) One AA - up to 15 hours, External Battery Pack (four AA) - up to 60 hours, External Battery Pack (two CR123A) - up to 40 hours
• Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
• Storage Temperature Range -50°C to +70°C (-58°F to +158°F)
• Protection Level IP67
• Weight (w/o barreries) Goggles: 550 g (1.2 lb) External Battery Pack: 250 g (0.55 lb)
• Overall Dimensions Goggles: 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in) External Battery Pack: 102 × 86 × 34 mm (4.0 × 3.4 × 1.3 in)

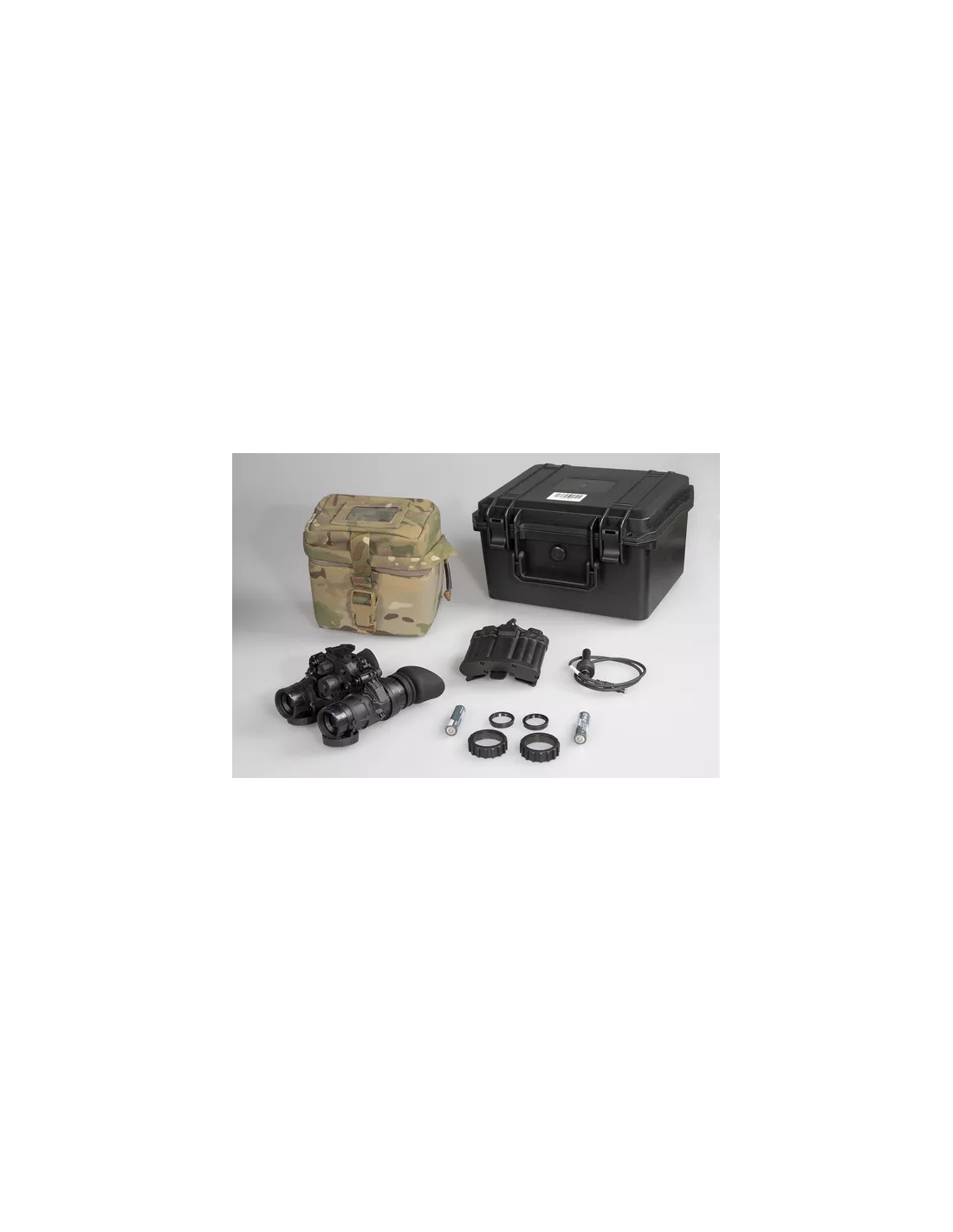

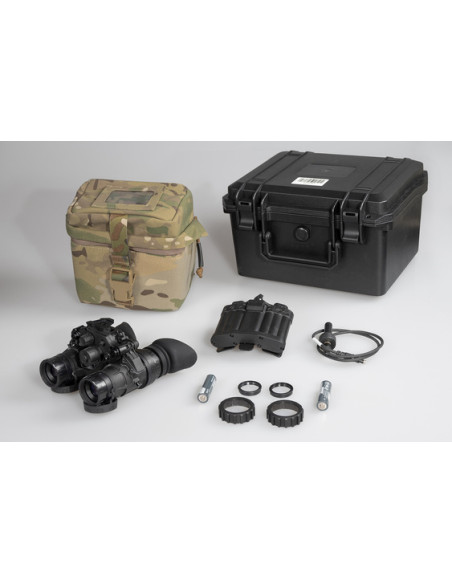

PACKAGE INCLUDES

• Night Vision Goggles
• External Battery Pack
• Connecting Cable with Battery Adapter
• Demist Shield (2)
• Sacrificial Window (2)
• Neck Strap
• Carrying Case
• Lens Cloth
• User Manual
• AA Battery
• Hard Case
