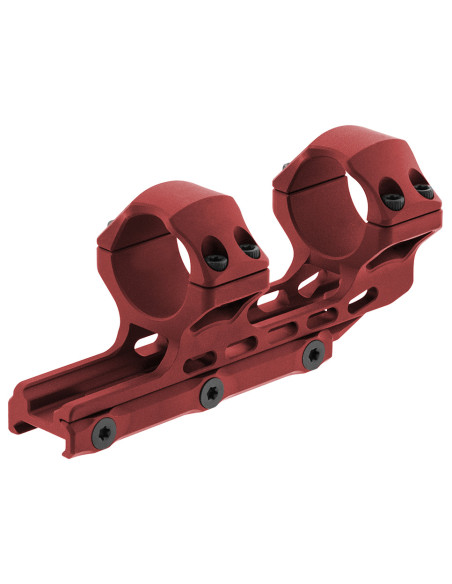

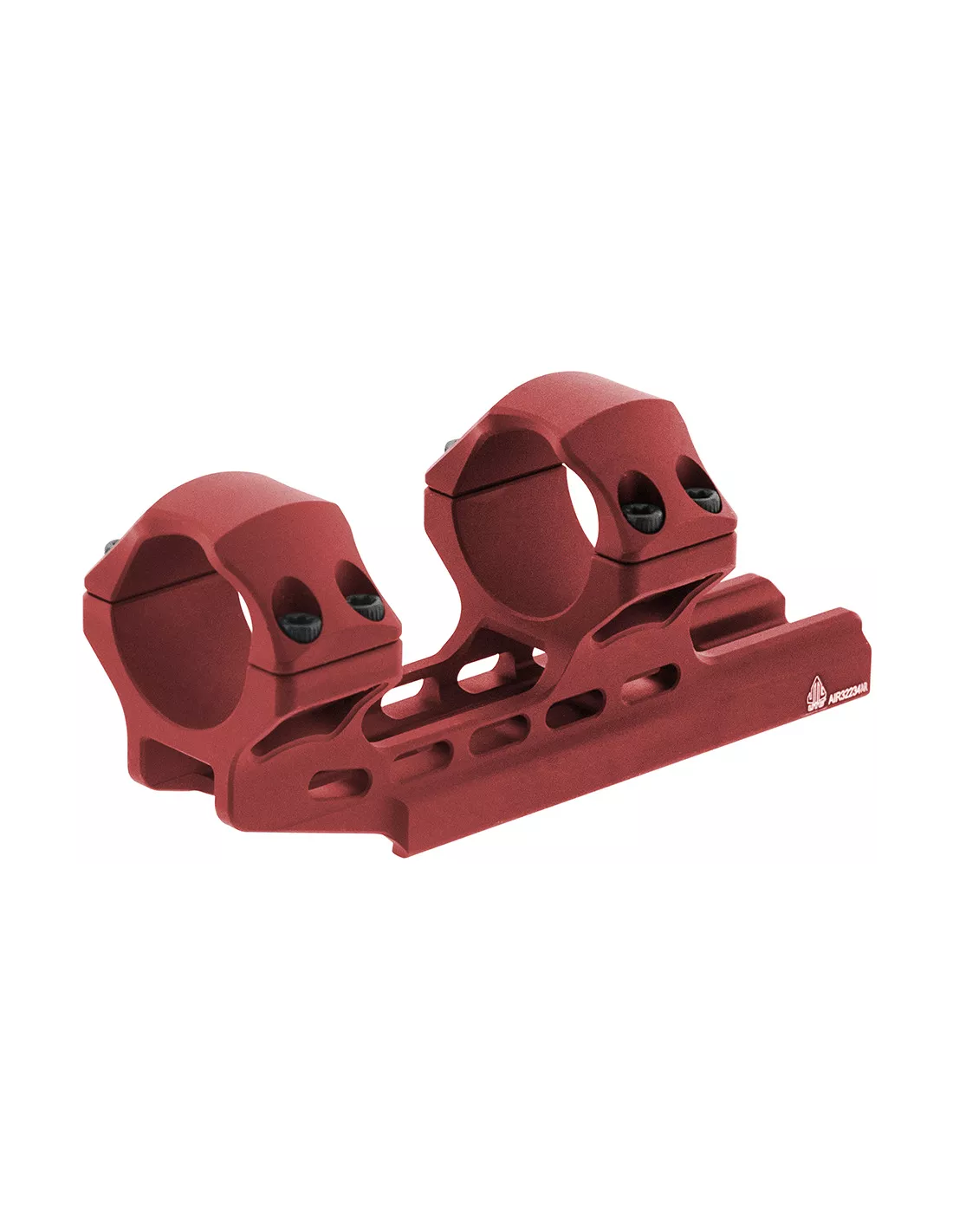

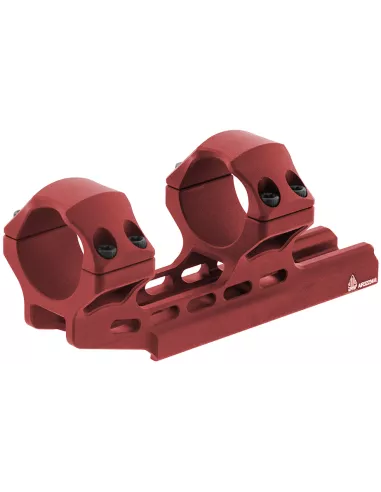

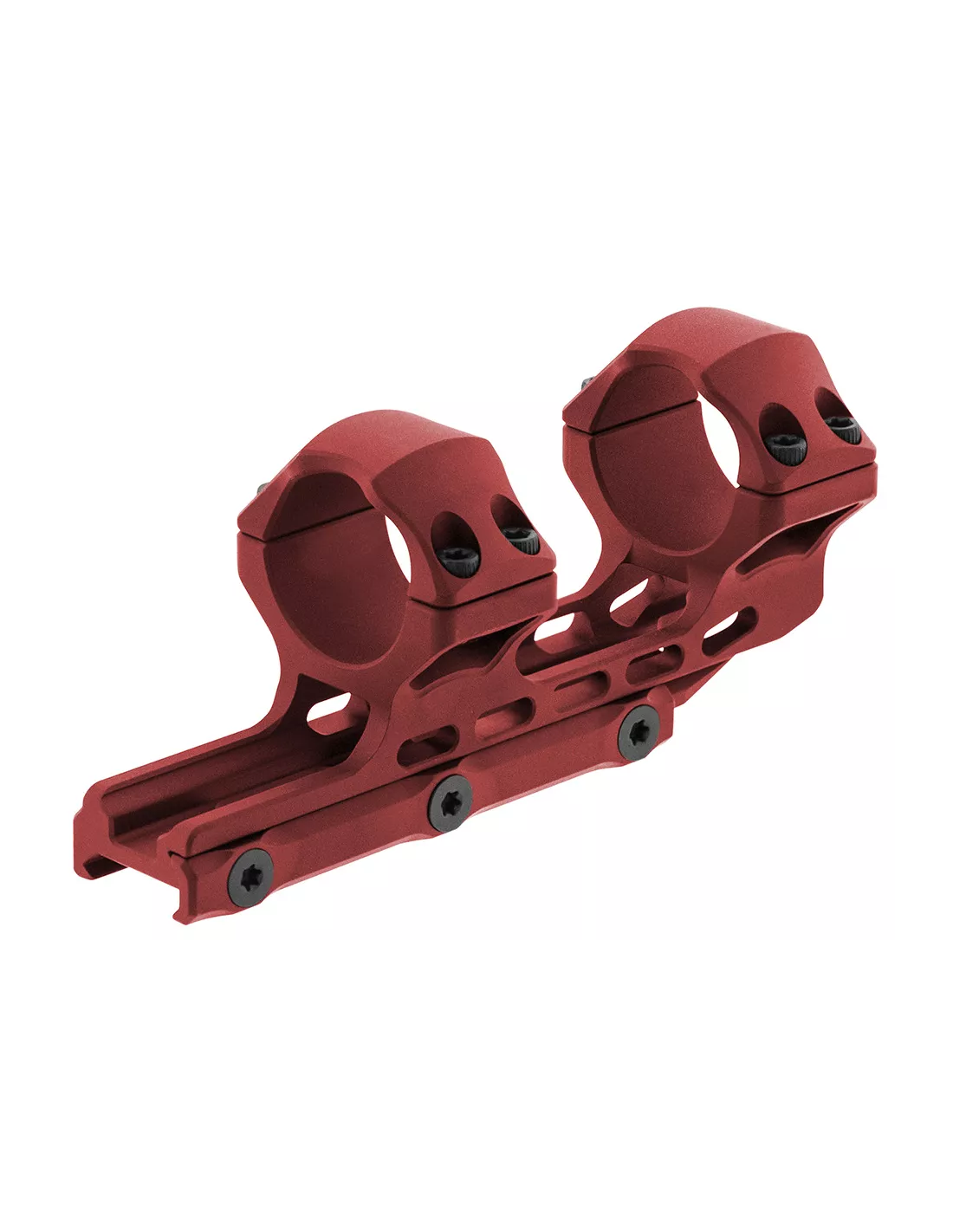

UTG® ACCU-SYNC® 30mm Picatinny Cantilever Mount, 34mm Offset, High Profile, Red

DETAILS:

• UTG ACCU-SYNC® 30mm High Profile 34mm Offset Scope Ring Mount for a Precise Fit on MIL-STD-1913 Picatinny Rails

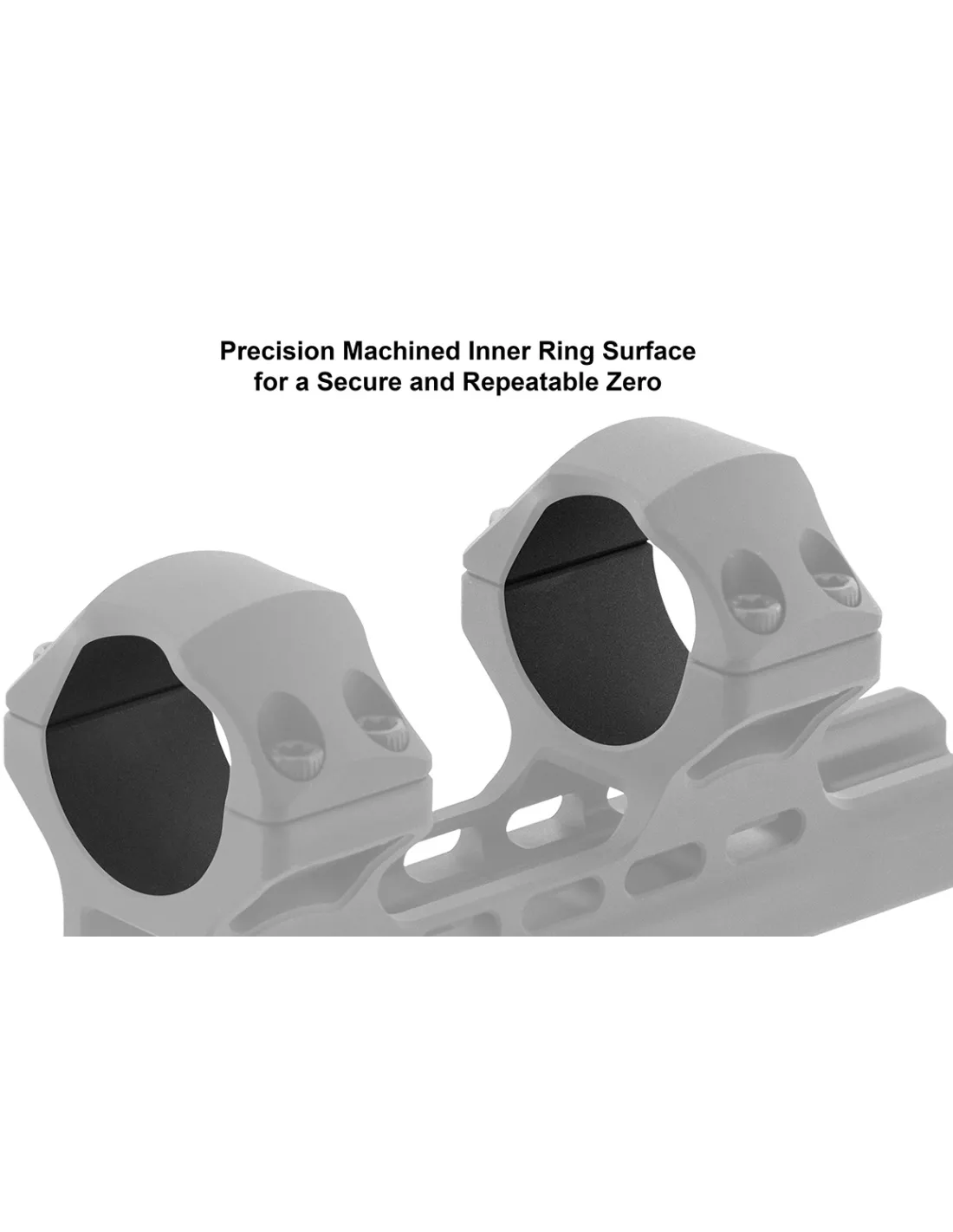

• Precision CNC Machined from Aircraft Grade Aluminum and Finished in a Red Anodize

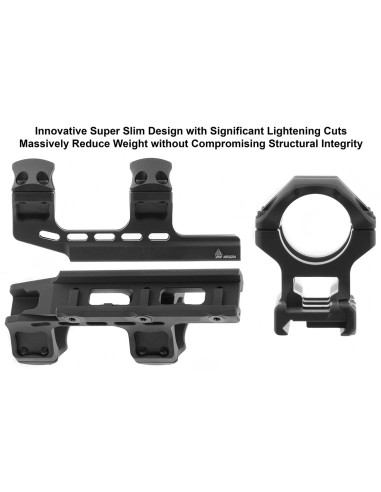

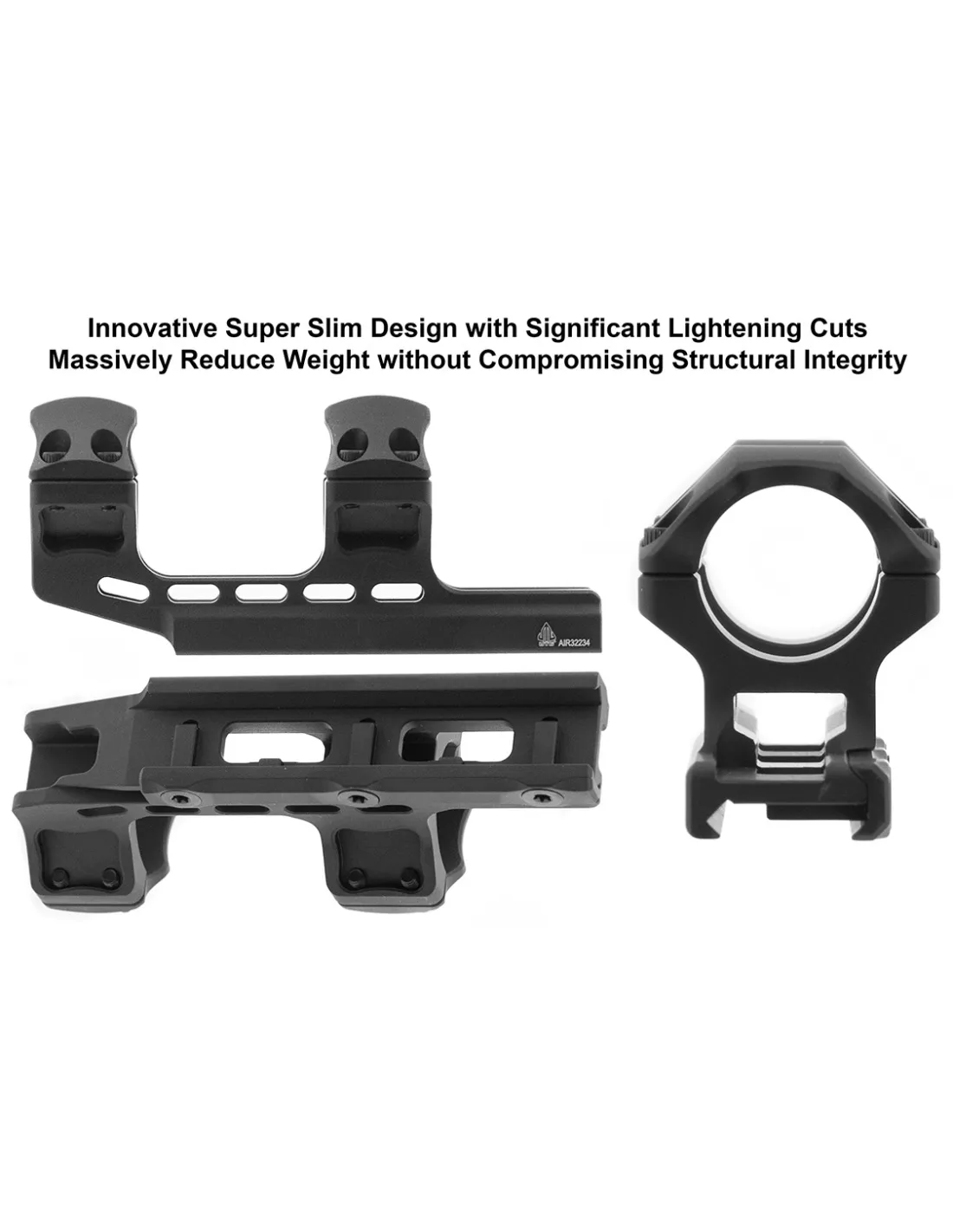

• Significant Lightening Cuts to Massively Reduce Weight Without Compromising Durability
• Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets

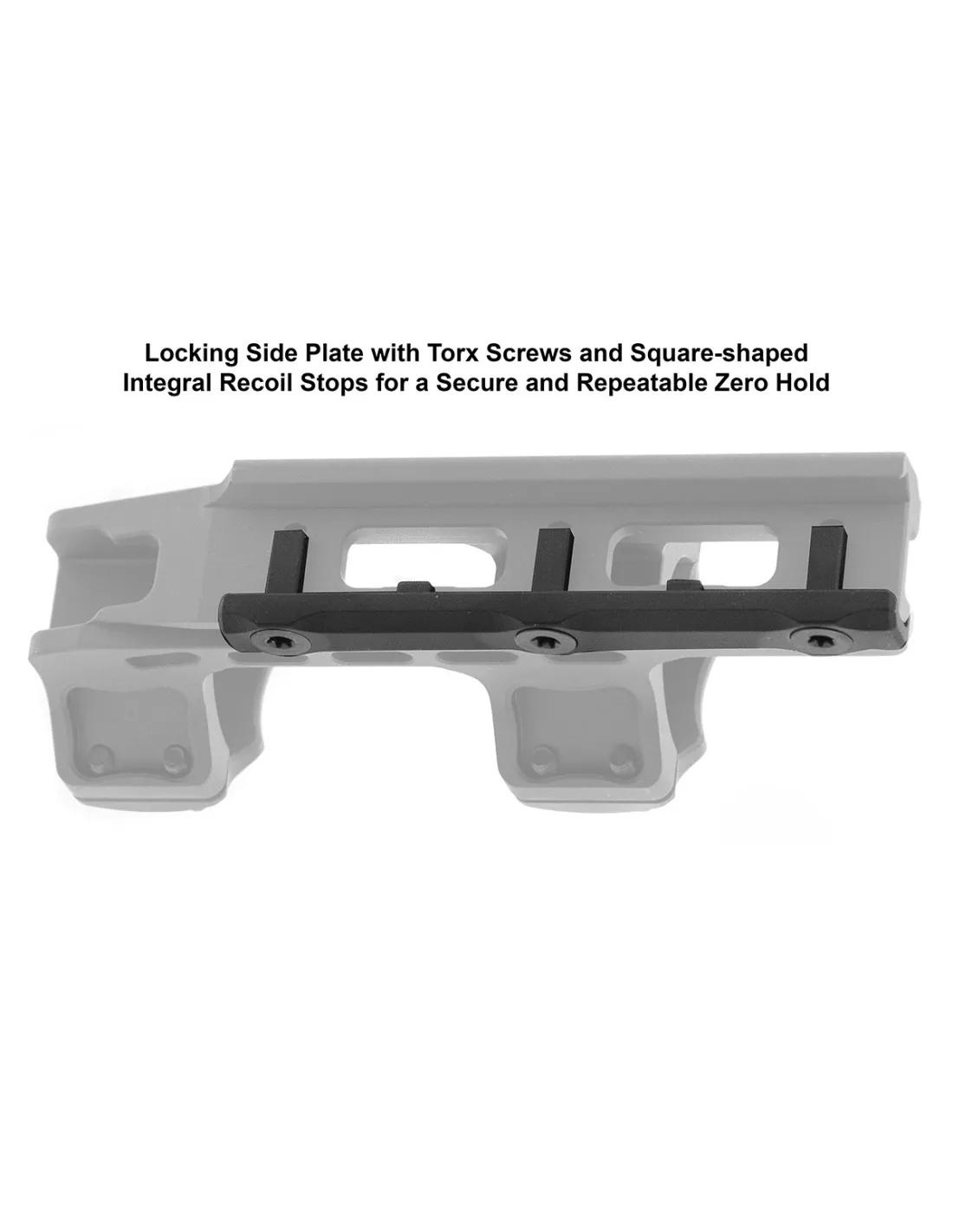

• Single Mount Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops For a Secure Zero Hold
• 22mm Saddle Height, 34mm Offset Distance, 100mm Base Length, High Profile Fits 30mm Tube Optics with up to a 73mm Outer Objective Diameter
• Includes a T20 Torx Wrench for Simple and User Friendly Installation
• NOTE: We recommend to tighten the ring top screws with a torque value of about 25 inch-lb and the side plate screw with torque value of about 35 inch-lb.

SPECIFICATIONS:

• Color(s): Red
• Compatible with: Picatinny
• Height Profile: High
• Materials: 6061-T6 Aluminum
• Mount Type: Picatinny
• Quick-detachable: No
• Required Picatinny Space: 11 slots
• Surface Finish: Anodized
• Torque Specification: 25 in-lbs (T20, Top Screws) | 35 in-lbs (T20, Side Plate)
• Weight: 5.4 oz (153 g)

DIMENSIONS:

• Base Length: 3.94 in (100 mm)
• Center Height: 1.46 in (37 mm)
• Inner Diameter: 30 mm
• Length: 5.27 in (134 mm)
• Max Fit Obj. Bell Dia: 2.87 in (73 mm)
• Offset Distance: 1.34 in (34 mm)
• Ring Distance (Inner): 1.73 in (44 mm)
• Ring Distance (Outer): 3.7 in (94 mm)
• Ring Width: .98 in (25 mm)
• Saddle Height: 0.87 in
• Saddle Height: .87 in (22 mm)
• Width: 1.84 in (46.7 mm)
