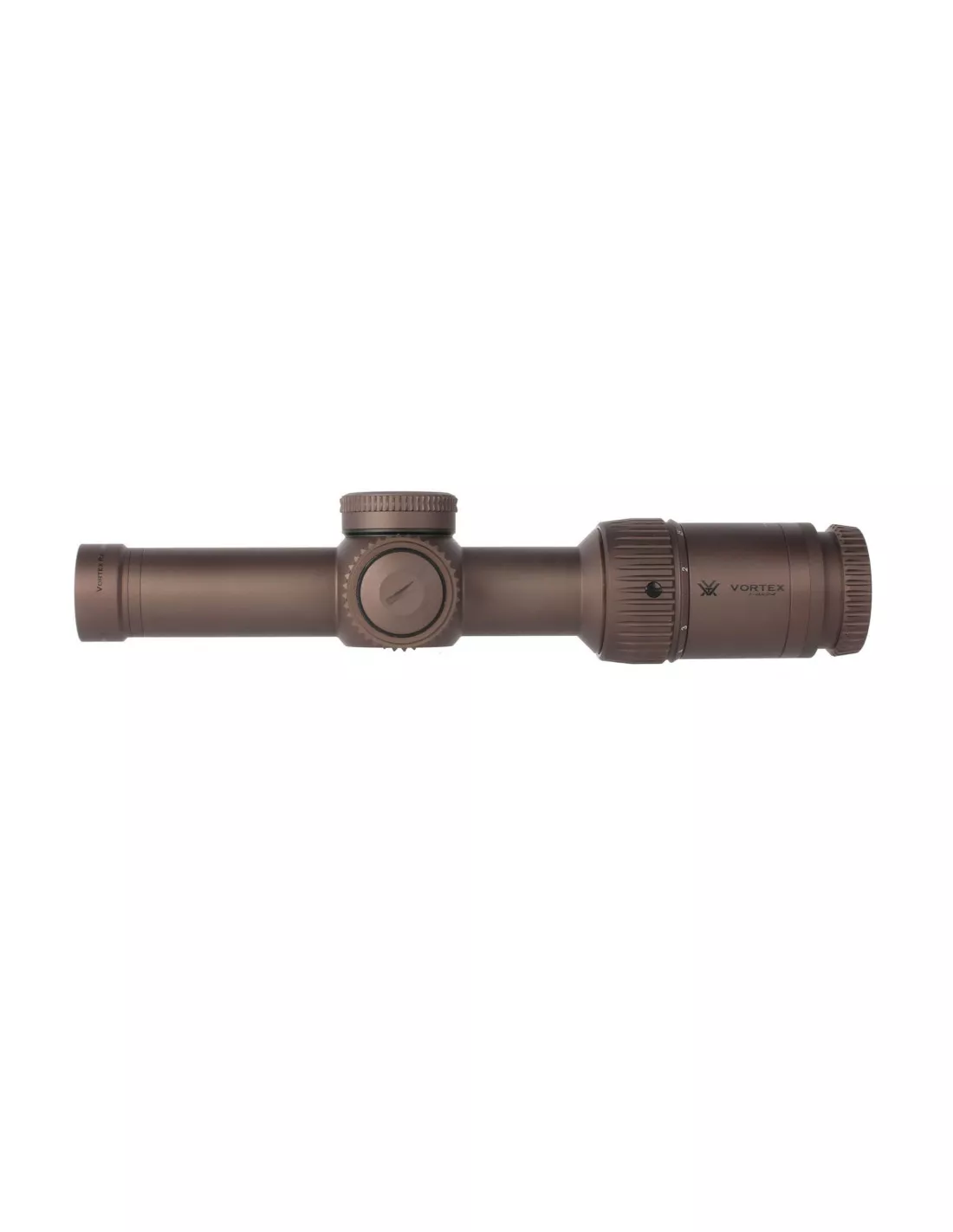

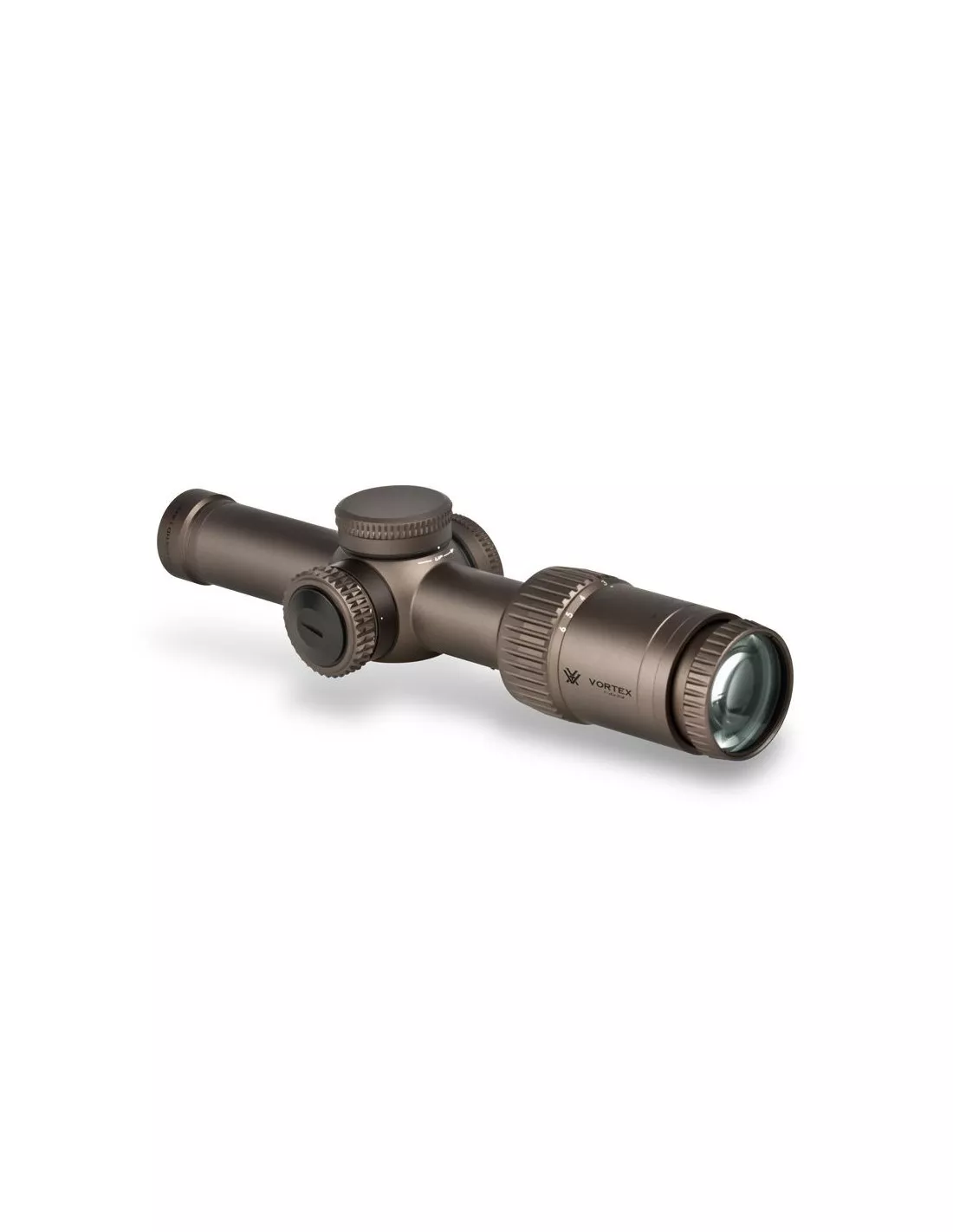

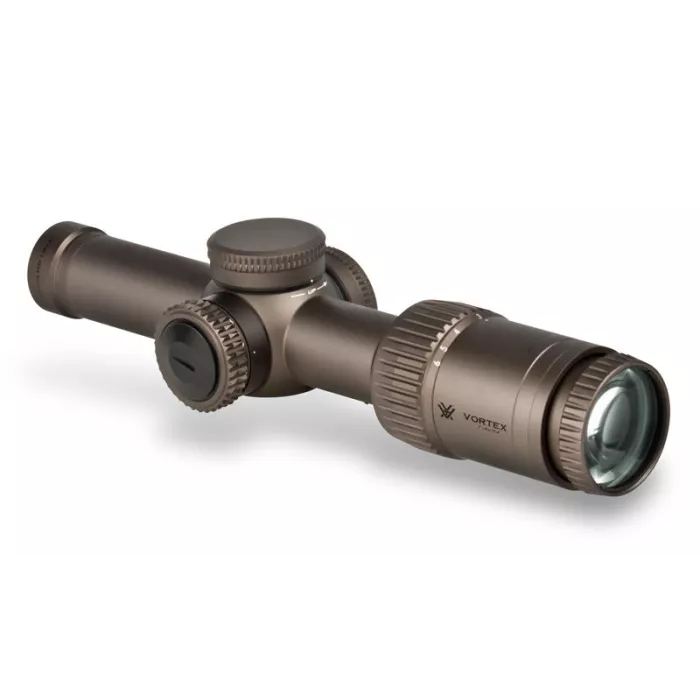

Vortex Razor Gen II HD-E 1-6x24 VMR-2 MOA

Vortex Razor HD Gen II-E 1-6x24 Specifications

Manufacturer:Vortex

Riflescopes series: Vortex Razor HD (Gen II-E)

Made in Japan

Warranty 10 years

Variable magnification Yes

Minimal magnification. 1x

Maximum magnification. 6x

Lens diameter. 24 mm

Min. exit pupil. 4 mm

Max. exit pupil. 24 mm

Min. field of view. 6.2m/100m

Max. field of view. 35.1m/100m

Min. eye relief. 102mm

Max. eye relief. 101.6mm

Fast focus eyepiece : Yes

Turret Type Capped

Turret locking No

Zero Stop No

Nr. Turret Turns MT - Multi Turn

Turret rotation direction CCW

Elevation (mrad). 43.6mrad

Elevation (MOA). 150MOA

Windage (mrad). 43.6mrad

Windage (MOA). 150MOA

Elevation Per Turn 50 MOA / 20 MRAD

Reticle position 2. focal plane - SFP

Illumination color Red

Daytime-usable illumination Yes

Auto Turn-Off -

Dot size. 0MOA

Parallax setting Fixed

Parallax adjustment No

Parallax adj. range Fixed at 100 m

Length. 256 mm

Weight. 609.5g

Working temperature range -

Power Supply No

Filled with Nitrogen

Lens coating Fully Multicoated

Tube diameter 30 mm

Mounting rail. No

Scope Rail Standard No

Mount rail type No

Mount length. 149.8mm

Objective diameter 32.7 mm

Eyepiece diameter 45.9 mm

Mounting Standard N/A

Waterproof Yes

Fogproof Yes

Shockproof Yes

Built-in rangefinder No
