- Built on TRUE STRENGTH® Platform, Completely Sealed and Nitrogen Filled, Shockproof, Fogproof, and Rainproof

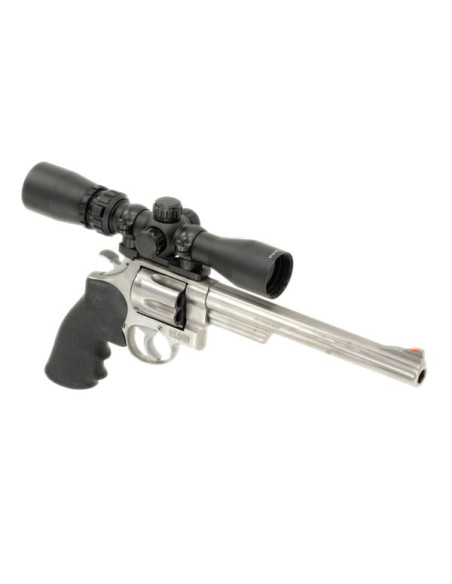

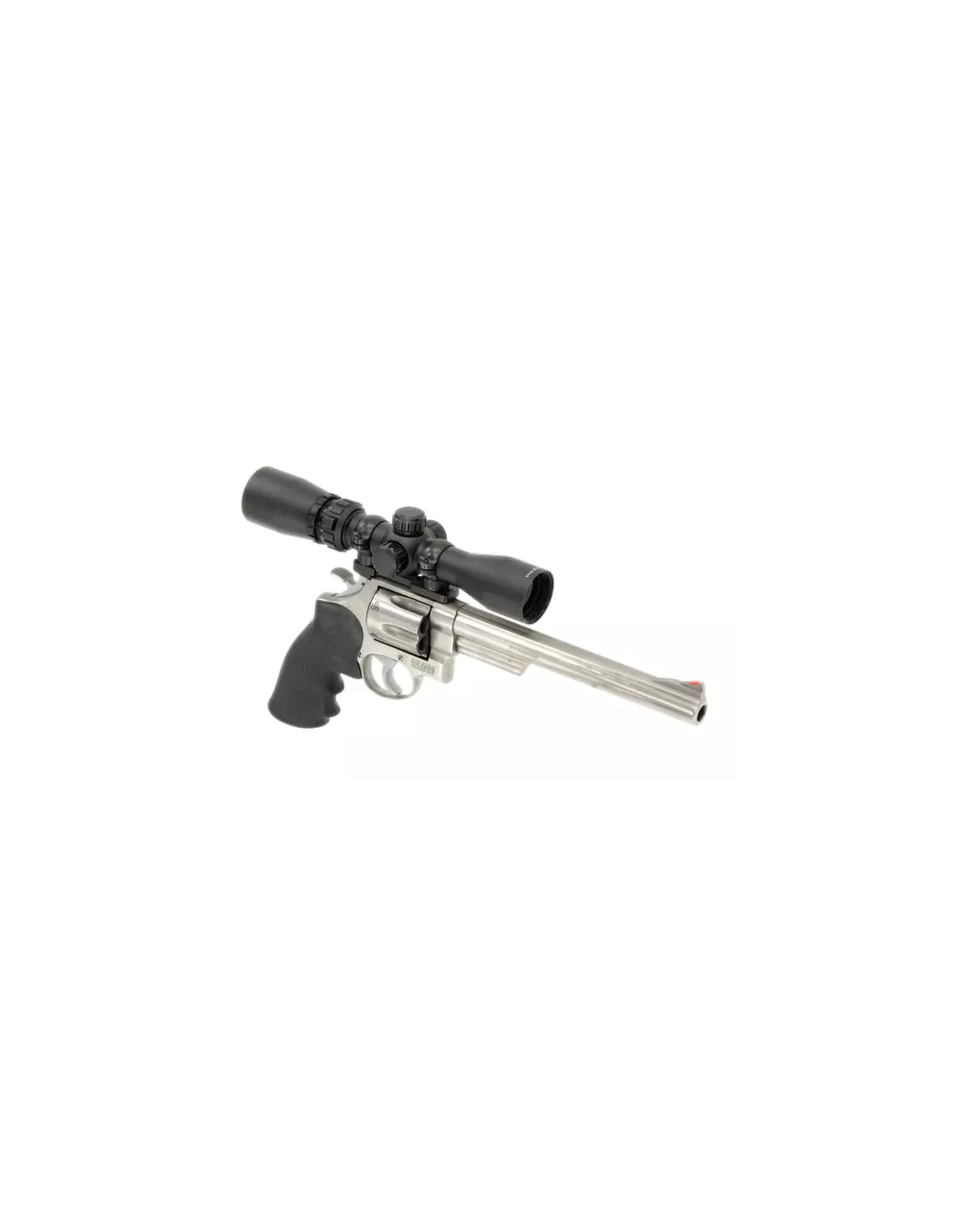

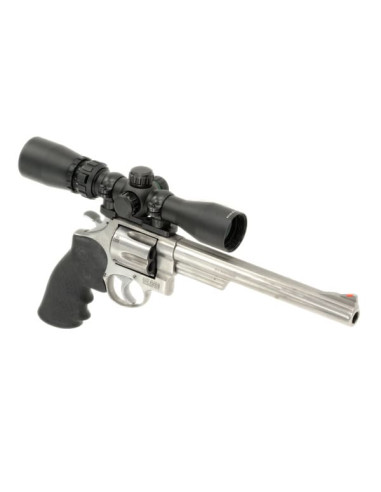

- Up to 25" of Eye Relief Allowing for Effective Use on Handguns
- Red/Green Illuminated Projectile Drop Compensation (PDC) Reticle Assists Shooting at Difference Distances

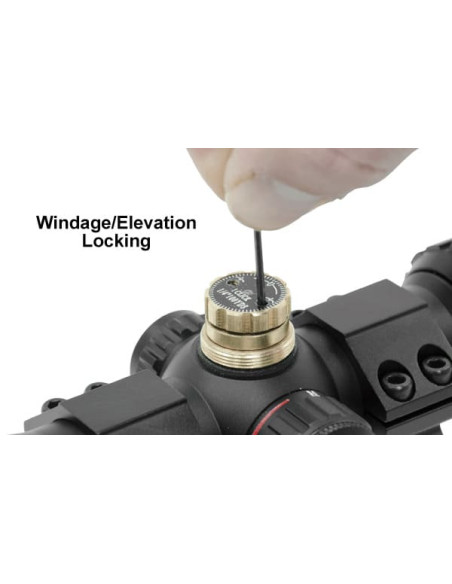

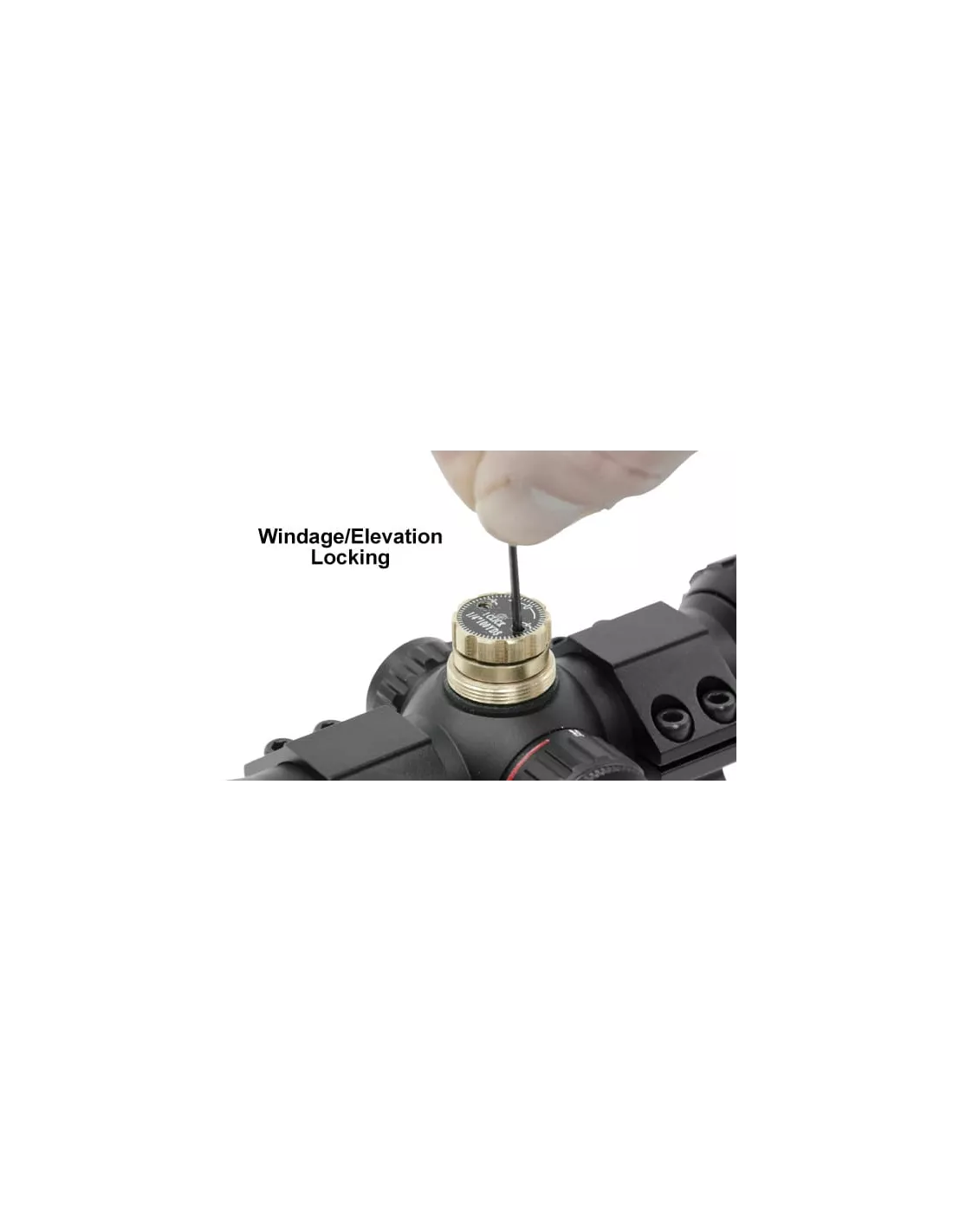

- Screw Lockable Turrets with Most Consistent and Precise 1/4MOA per Click Windage/Elevation Adjustment
- Adjustable Eyepiece with Locking Ring for Additional Security
- Emerald Coated Lenses to Achieve Maximum Light Transmission for Best Clarity
- Parallax Pre-set at 35Yds

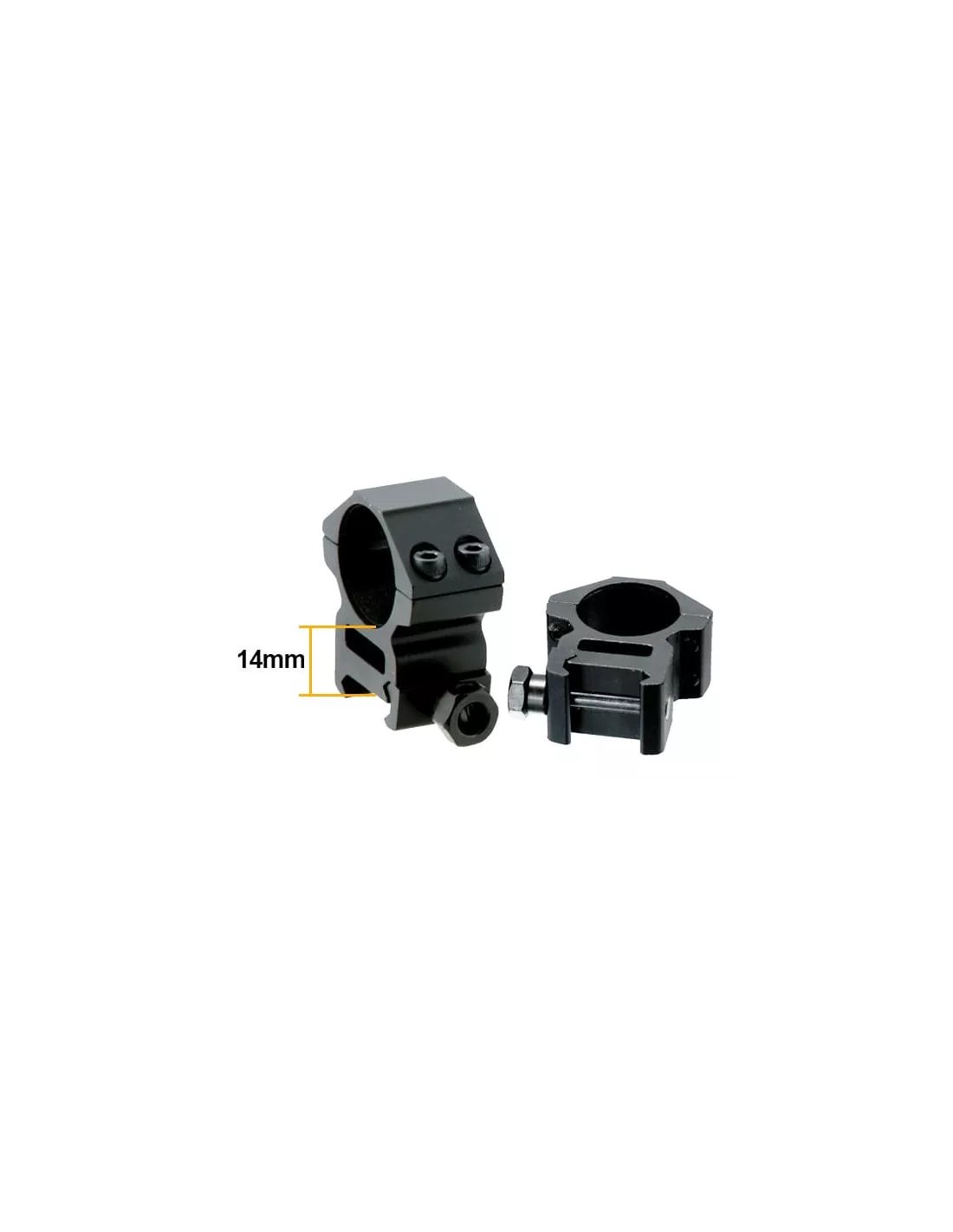

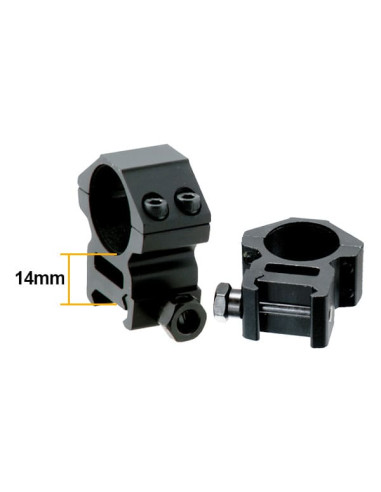

- Complete with Medium Height Picatinny/Weaver Rings and High Quality Flip-open Lens Caps
History, development, & technology
TS, as in True Strength®, is the signature scope construction platform of Leapers UTG® optics. As the name suggests, no matter if it's a full size or compact scope, magnifier or dot sight, we aim to achieve the highest dependability starting at the heart of our scopes' structure. The research and development of this innovative structure was initiated in 2001 and in 2002 the first TS Platform scope was put into mass production. With our continuous testing, verification, and multiple rounds of improvement, we started promoting and selling TS optics on a global scale in 2005. Today, all our optics are built on the tough TS Platform to include a one-piece integral aluminum main tube, meticulously placed reinforcements at key structural points, and nitrogen purging to achieve optimal rainproof, fogproof, and shockproof performance even in the most challenging of scenarios. This superior TS Platform has even been adopted into the lineup of UTG® laser products, giving them precise and secure adjustment.

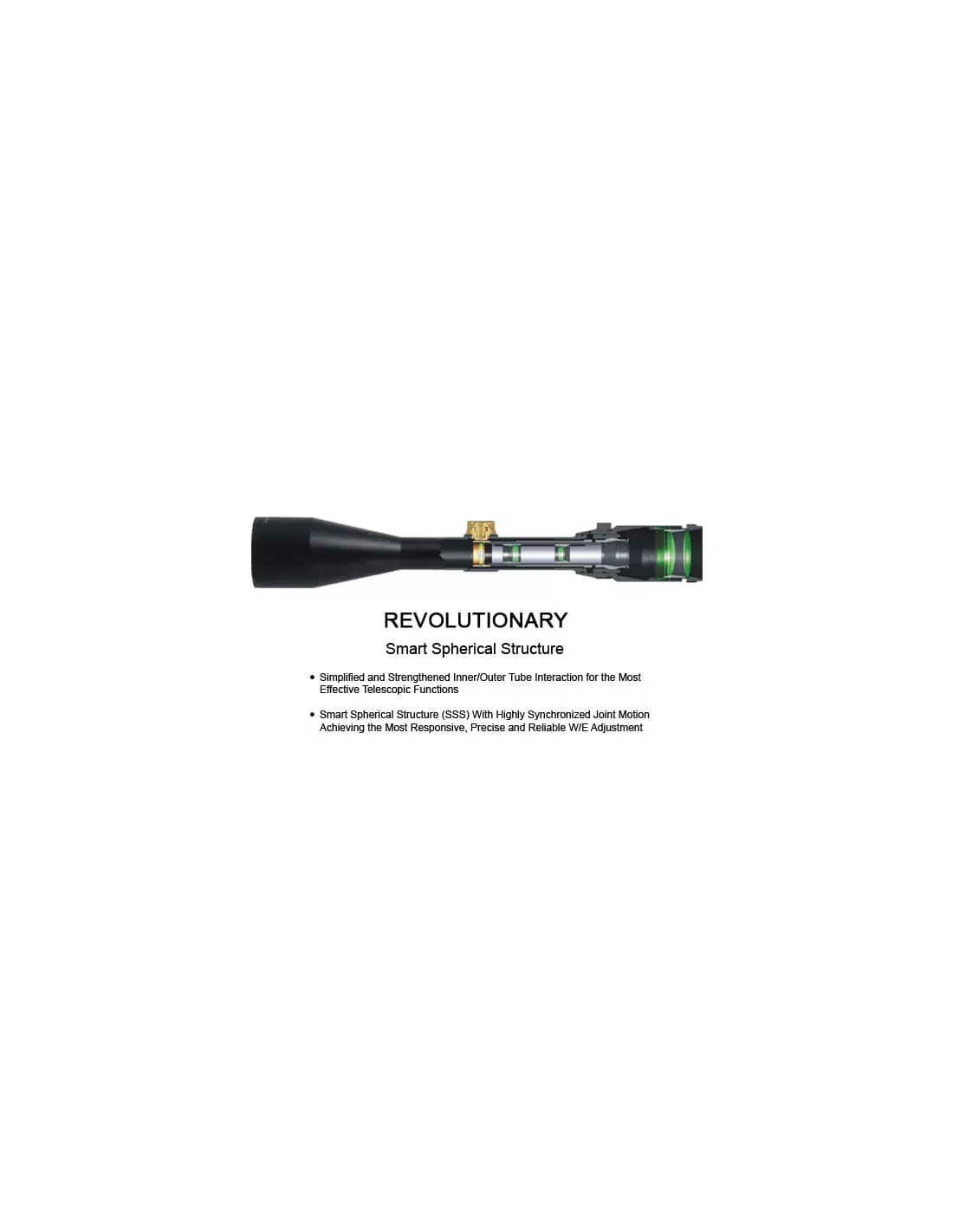

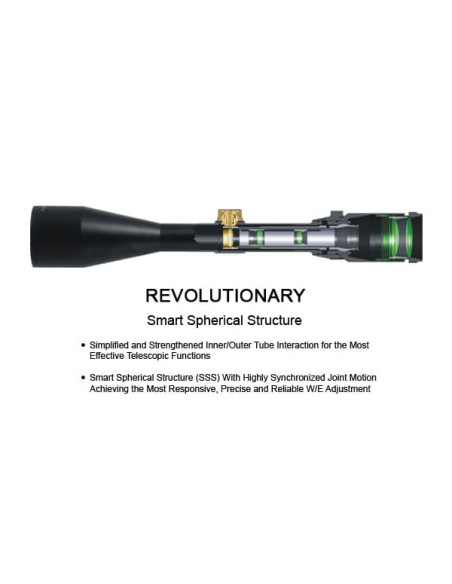

SMART SPHERICAL STRUCTURE
- The Smart Spherical Structure (SSS) is one of the most significant characteristics of the TS Platform.
- SSS simulates the human joint structure to achieve the utmost precision and reliability.
- The erector tube is constrained via a ball and socket structural relationship, which provides the desirable flexibility to respond to windage and elevation adjustments and the optimal ability to hold zero under heavy recoil.
TRUE STRENGTH® PLATFORM
- Reduces and Absorbs Recoil, Alleviating Potential Loss of Zero
- Fully Tested on Both Air Rifles and Firearms
- TS Technology Implemented in Every Leapers Scope
ADVANCED RECOIL PROOF SYSTEM
- The Most Advanced and User-friendly Windage and Elevation Adjustment System with Innovative Design, Precision Components, and Disciplined Assembly
- UTG®'s Leaf Spring System is Made from a Special Heat Treated Beryllium Bronze Alloy to Maintain Reliable and Consistent Long Term Tension
- ACCUSHOT® Models Equipped with a Rugged Coil Erector Return Spring System For Improved Zero Hold Under Heavy Recoil and Greater Windage/Elevation Adjustment Range
WIRE PDC RETICLE
The Projectile Drop Compensation (PDC) reticle uses different bars and circles arranged at designated heights to aid in range estimation and serve as aiming points set at predetermined distances. This enables easy and rapid target engagement at multiple ranges.
USING THE PDC RETICLE
Due to the wide variety of handguns that this scope can be mounted to, the correct bullet drop distances can vary significantly. A .38 Special handgun will show more bullet drop than a .308 Winchester one.
Refer to section M. General Zeroing Instructions to zero the center crosshair.
The descending reference points are 2 MOA, 6 MOA, and 10 MOA, with the top of the lower post at 15 MOA below the center crosshair, at full 7x magnification.
Use the above information to approximate the distances that these holdovers will be accurate for, or alternately use a ballistics calculator.
For best results, confirm the approximations with live fire testing.
- Weight
- 14 oz (397 g)
- Material
- Aluminum
- Mount
- 1" Picatinny/Weaver Rings
- Quick detach
- No
- Battery Loading
- Left Side Turret
- Battery Type
- CR1620 3V
- Brightness Mode(s)
- Manual
- Brightness Settings
- Gradual
- Click Value
- 1/4 MOA
- Illumination Toggle Type
- Analog Rheostat
- Magnification
- 7X max / 2X min
- Parallax
- Fixed @ 35 yds (32.0 m)
- Reticle
- PDC / Wire
- Reticle Color
- Red and Greenv
- Ballistic Drop Compensation
- No
- Illuminated
- Yes
- Range Estimation
- No
- Eye Relief
- 25 in - 13.8 in (635 mm - 351 mm)
- Field of View (Linear FOV @ 100 yds)
- Low Power: 19.2′ / High Power: 7′
- Diopter Adjustment
- -2D to +2D
- Diopter Type
- Locking Ring
- Dustproof Rating
- IP6X
- Elevation Travel
- Up 30 MOA / Down 30 MOA // 60 MOA - total
- Exit Pupil
- 16 mm - 5 mm
- Field of View (Angular FOV)
- Low Power: 2.5° / High Power: 1.3°
- Focal Plane
- SFP (Second Focal Plane)
- Windage Travel
- Right 30 MOA / Left 30 MOA // 60 MOA (total)
